(1.89.6/11[01A]) - (VAR.484-496) RIGHT TIE ROD AND SPRAG WITH CONTROL VALVES WITH ELECTRONIC CONTROL - TIE-ROD - D4820

Запчасти Case IH MXM175 (1.89.6/11[01A]) - (VAR.484-496) RIGHT TIE ROD AND SPRAG WITH CONTROL VALVES WITH ELECTRONIC CONTROL - TIE-ROD - D4820 (09) - IMPLEMENT LIFT

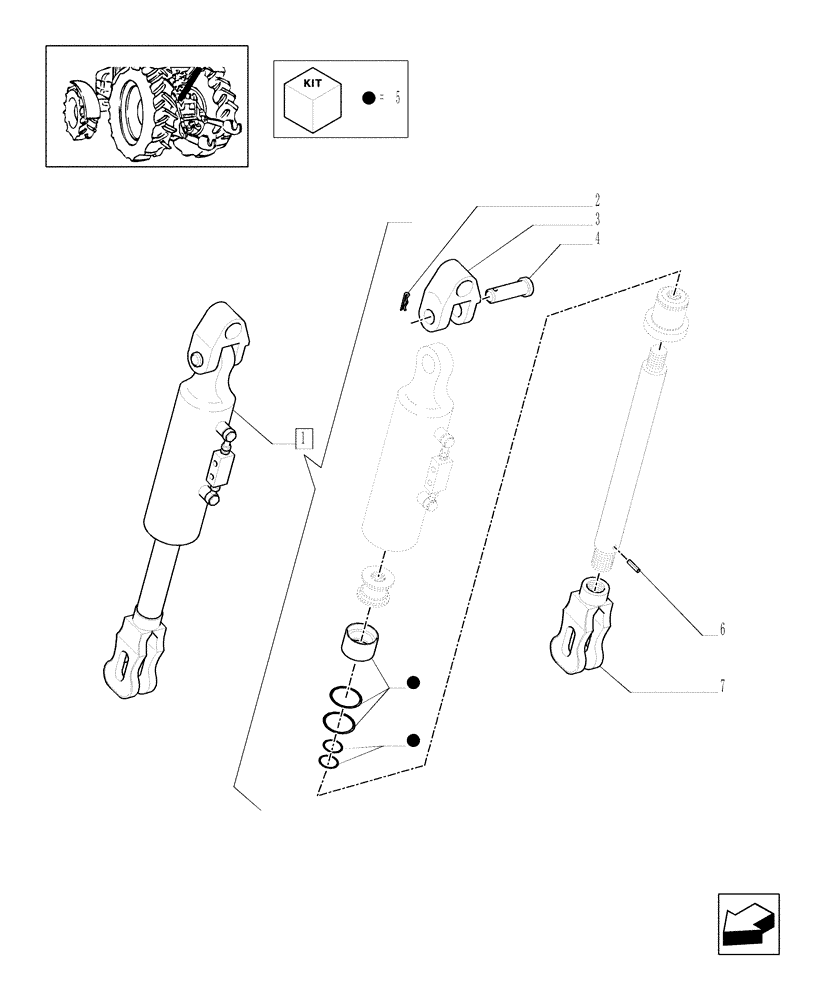

Схема запчастей Case IH MXM175 - (1.89.6/11[01A]) - (VAR.484-496) RIGHT TIE ROD AND SPRAG WITH CONTROL VALVES WITH ELECTRONIC CONTROL - TIE-ROD - D4820 (09) - IMPLEMENT LIFT
6
5
5
3
1
4
2
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5188141

LIFT LINK

1шт.

2

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

3

5197826

YOKE

1шт.

4

5197827

PIN

1шт.

5

5197835

SEALING RING

1шт.

6

14607471

LOCK PIN,M8 x 50, Slotted

1шт.

7

5197842

FORK,M36 x 3

1шт.
