(1.89.6/09D) - (VAR.900) HYDR. ADJUSTMENT OF RIGHT TIE-ROD AND 3POINT LINK FOR CLOSED CCLS CENTRE - TIE-ROD - C4820

Запчасти Case IH MXM175 (1.89.6/09D) - (VAR.900) HYDR. ADJUSTMENT OF RIGHT TIE-ROD AND 3POINT LINK FOR CLOSED CCLS CENTRE - TIE-ROD - C4820 (09) - IMPLEMENT LIFT

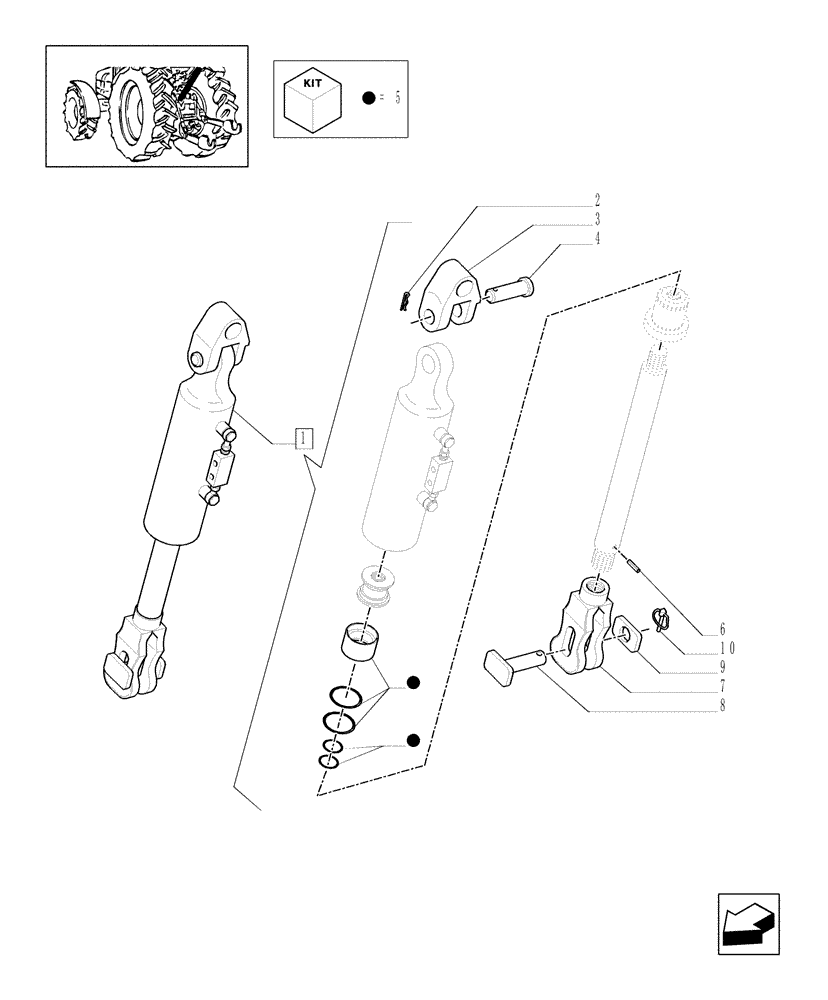

Схема запчастей Case IH MXM175 - (1.89.6/09D) - (VAR.900) HYDR. ADJUSTMENT OF RIGHT TIE-ROD AND 3POINT LINK FOR CLOSED CCLS CENTRE - TIE-ROD - C4820 (09) - IMPLEMENT LIFT
9
5
6
4
8
1
2
5
10
5
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5188141

LIFT LINK

1шт.

2

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

3

5197826

YOKE

1шт.

4

5197827

PIN

1шт.

5

5197835

SEALING RING

1шт.

6

14607471

LOCK PIN,M8 x 50, Slotted

1шт.

7

5197842

FORK,M36 x 3

1шт.

8

5197820

PIN,28mm OD x 117mm L

1шт.

9

5197822

PLATE

1шт.

10

47125579

LINCH PIN,11.5mm OD

ROLL PIN

1шт.
