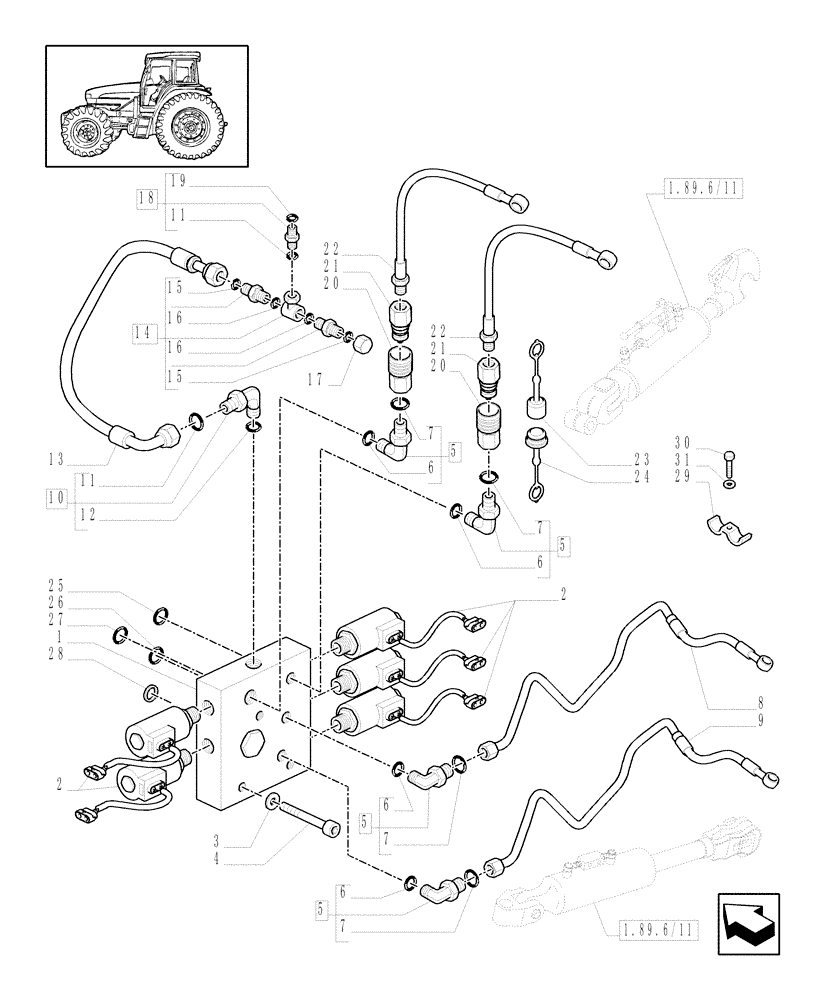

Запчасти Case IH MXM175 (1.82.7/16[01]) - (VAR.484-496) RIGHT TIE ROD AND SPRAG WITH CONTROL VALVES WITH ELECTRONIC CONTROL - PIPES - C5928 (07) - HYDRAULIC SYSTEM

1

5197134

SOLENOID VALVE

Incl. 2

1шт.

2

47123023

SOLENOID

5шт.

3

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

4

14359320

SCREW,M8 x 65mm

M8 x 65

3шт.

5

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

11/16", M16 x 1.5

4шт.

6

14437885

O-RING,13.30mm ID x 2.40mm

4шт.

7

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

4шт.

8

87350825

HYD TUBE,10 mm OD

Upper

1шт.

9

87350827

HYD TUBE,10 mm OD

Lower

1шт.

10

47123008

ELBOW

M12 x 1.5, 9/16"-18

1шт.

11

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

2шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

13

87302784

FLEXIBLE HOSE,6.4mm ID x 645mm L

645 mm lg

1шт.

14

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

Shuttle

1шт.

15

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

16

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

17

5189973

PLUG

9/16"-18

1шт.

18

5185045

HYD CONNECTOR

9/16"-18, M12 x 1.5

1шт.

19

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

20

47123022

QUICK MALE COUPLING,26mm ID x 33.2mm OD x 62.5mm L, Female

2шт.

21

47123021

HALF-COUPLING

2шт.

22

47123016

HYDRAULIC HOSE

940 mm lg

2шт.

23

47123381

PLUG

250 mm lg

1шт.

24

47123380

PLUG

241 mm lg

1шт.

25

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

26

14457981

O-RING,1.049" ID x 0.103" Width

1шт.

27

14458181

O-RING,29.82mm ID x 2.62" Width

1шт.

28

47127028

SEALING WASHER

16.5 x 22 x 1.5

1шт.

29

85700613

CLAMP,1.75mm W x 0.20mm Thk

1шт.

30

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

31

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

1шт.
