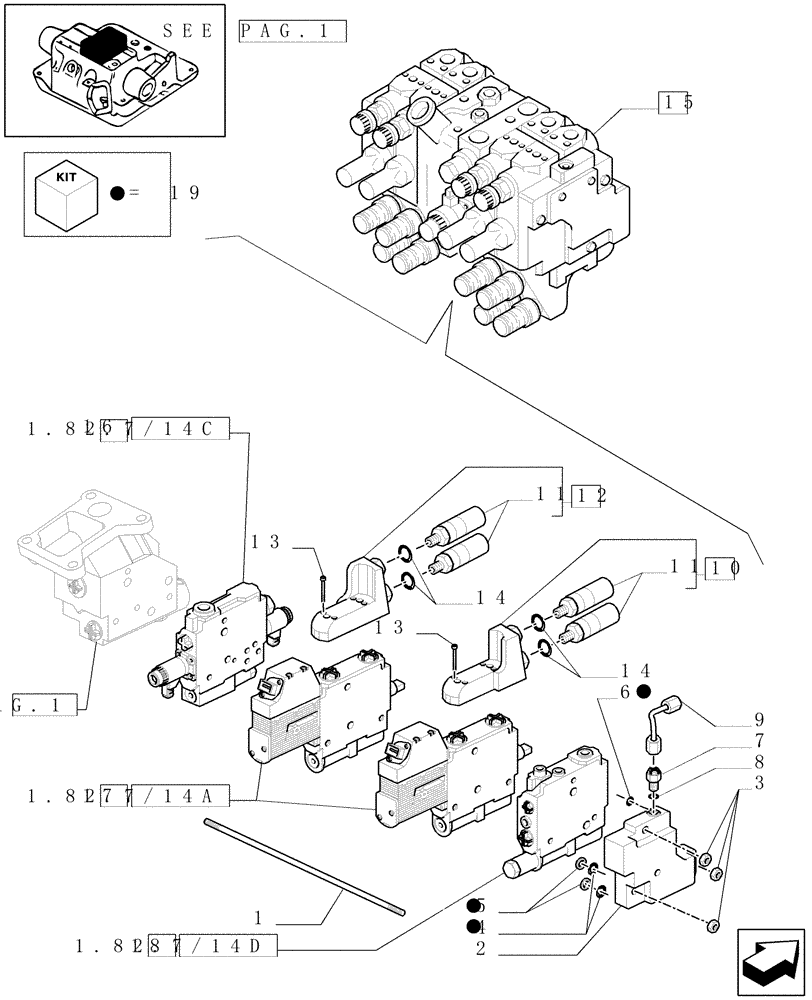

Запчасти Case IH MXM175 (1.82.7/15[02]) - (VAR.718) BATTERY WITH FOUR CONTROL VALVES WITH ELECTRONIC CONTROL - C5504 (07) - HYDRAULIC SYSTEM

1

47123183

STUD,M8

3шт.

2

5195157

COVER

Incl. 4, 5, 6

1шт.

3

16100821

NUT,M8, Cl 10

3шт.

4

5190751

O-RING,2.5mm Thk x 18mm ID

18 x 2.5

2шт.

5

5195150

BACK-UP RING

2шт.

6

81862872

O-RING,2.4mm Thk x 19.6mm ID

19.6 x 2.4

1шт.

7

5191704

CHECK VALVE

1шт.

8

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

9

47126999

HYD TUBE

1шт.

10

5191803

COUPLING

Assy, Serial Range: -293075

1шт.

10

87381981

HYDRAULIC MANIFOLD

is faster 4bm10, Assy, Start Serial: 293076

1шт.

11

5190882

PUSH-PULL COUPLING

, Serial Range: -293075

4шт.

11

87381944

COUPLING, QUICK, FEM

, Start Serial: 293076

4шт.

12

5191806

COUPLING

Assy, Serial Range: -293075

1шт.

12

87381982

HYDRAULIC MANIFOLD

is faster 4bm11, Assy, Start Serial: 293076

1шт.

13

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

8шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

15

47123178

HYD VALVE SECTION

1шт.

16

47123180

HYD VALVE SECTION

1шт.

17

47123179

HYD VALVE SECTION

2шт.

84125295R

REMAN-HYD VALVE

MXM175, MXM190 all (6/02-) REMAN FOR NEW P/N 47123179

2шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

18

47123176

HYD VALVE SECTION

1шт.

19

47126963

SEAL

1шт.
