(1.82.7/14[03]) - (VAR.252) BATTERY WITH FIVE CONTROL VALVES WITH ELECTRONIC CONTROL - D5504

Запчасти Case IH MXM175 (1.82.7/14[03]) - (VAR.252) BATTERY WITH FIVE CONTROL VALVES WITH ELECTRONIC CONTROL - D5504 (07) - HYDRAULIC SYSTEM

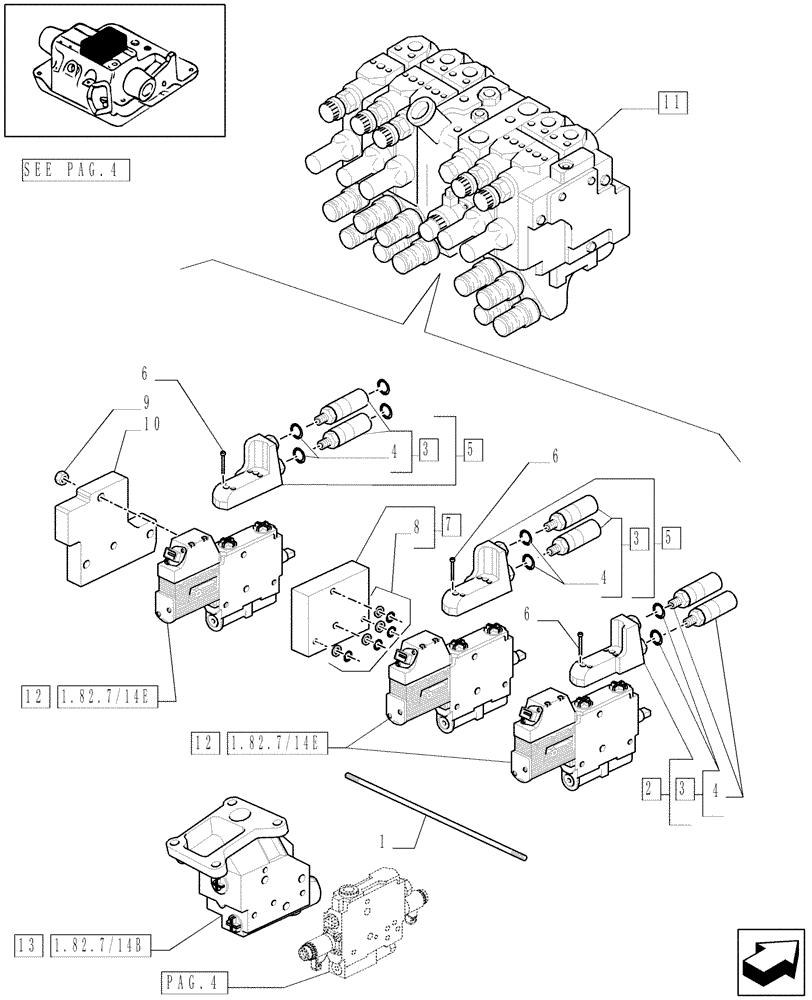

Схема запчастей Case IH MXM175 - (1.82.7/14[03]) - (VAR.252) BATTERY WITH FIVE CONTROL VALVES WITH ELECTRONIC CONTROL - D5504 (07) - HYDRAULIC SYSTEM
11
1.82.7/14e
6
see pag.4
6
12
1
9
12
4
1.82.7/14b
5
3
4
3
5
4
1.82.7/14e
8
10
pag.4
6
2
3
13
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47127002

TIE-ROD

3шт.

2

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, Assy

1шт.

3

87381944

COUPLING, QUICK, FEM

6шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

5

87381984

HYDRAULIC MANIFOLD

is faster 4bm13, Assy

2шт.

6

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

12шт.

7

47123182

SPACER

1шт.

8

47127019

SEAL

1шт.

9

5195169

NUT,M8

3шт.

10

5190710

PLATE

1шт.

11

87553796

CONTROL VALVE

1шт.

12

87531906

HYD VALVE SECTION

3шт.

84125295R

REMAN-HYD VALVE

MXM175, MXM190 all (6/02-) REMAN FOR NEW P/N 87531906

3шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

13

47123177

BODY

1шт.
