Запчасти Case IH MXM175 (1.82.7/14[01]) - (VAR.252) BATTERY WITH FIVE CONTROL VALVES WITH ELECTRONIC CONTROL - C5504 (07) - HYDRAULIC SYSTEM

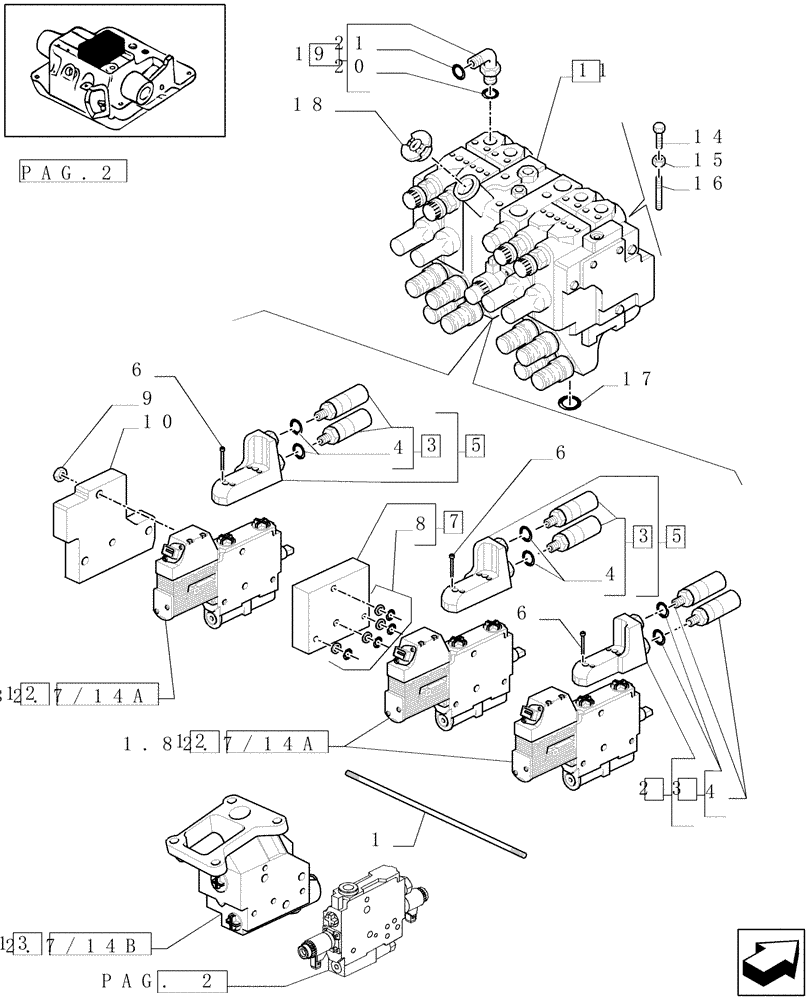

Схема запчастей Case IH MXM175 - (1.82.7/14[01]) - (VAR.252) BATTERY WITH FIVE CONTROL VALVES WITH ELECTRONIC CONTROL - C5504 (07) - HYDRAULIC SYSTEM
12
21
20
17
1
5
4
3
11
15
1.82.7/14a
1.82.7/14b
pag. 2
1.82.7/14a
9
6
3
12
10
6
4
5
6
4
see pag.2
3
18
16
8
2
7
19
13
14

Артикул

Название

Примечание

Количество

1

47127002

TIE-ROD

3шт.

2

5191808

COUPLING

Assy, Serial Range: -293075

1шт.

2

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, Assy, Start Serial: 293076

1шт.

3

5190882

PUSH-PULL COUPLING

, Serial Range: -293075

6шт.

3

87381944

COUPLING, QUICK, FEM

, Start Serial: 293076

6шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

5

5191811

COUPLING

Assy, Serial Range: -293075

2шт.

5

87381984

HYDRAULIC MANIFOLD

is faster 4bm13, Assy, Start Serial: 293076

2шт.

6

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

12шт.

7

47123182

SPACER

1шт.

8

47127019

SEAL

1шт.

9

16100821

NUT,M8, Cl 10

3шт.

10

5190710

PLATE

1шт.

11

47123181

CONTROL VALVE

1шт.

12

47123179

HYD VALVE SECTION

3шт.

84125295R

REMAN-HYD VALVE

MXM175, MXM190 all (6/02-) REMAN FOR NEW P/N 47123179

3шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

13

47123177

BODY

1шт.

14

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

15

12164714

NUT,M10 x 1.25, Cl 8

2шт.

16

13449724

STUD

M10 x 1.25 x 30

1шт.

17

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

18

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

19

47123008

ELBOW

M12 x 1.5, 9/16"-18

1шт.

20

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

21

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

Выбрано товаров: 26
