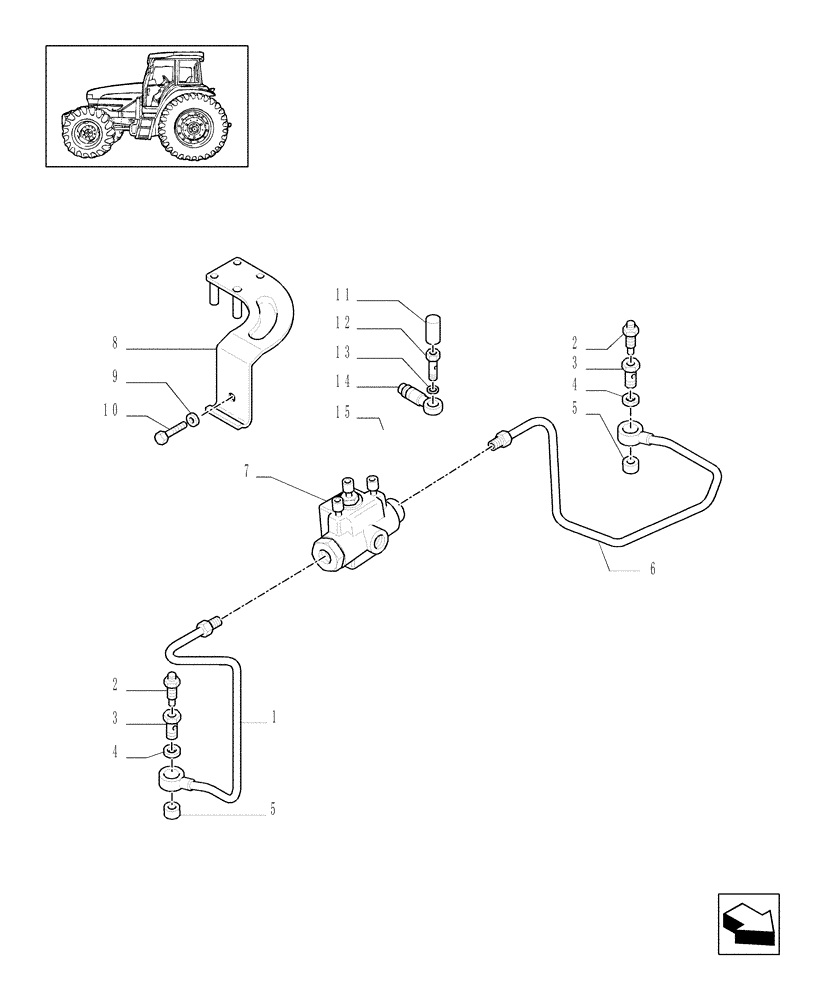

Запчасти Case IH MXM175 (1.82.713/07[02]) - (VAR.396) BRAKING SYSTEM VALVE (07) - HYDRAULIC SYSTEM

1

5196323

BRAKE LINE

460 mm lg

1шт.

2

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

3

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

4

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

2шт.

5

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

6

5196324

BRAKE LINE

840 mm lg

1шт.

7

47126821

HYDRAULIC VALVE

1шт.

8

5198964

BRACKET

1шт.

9

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

10

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

11

44995074

PLUG,M8 x 1.0

1шт.

12

5121685

BANJO BOLT,M12 x 1.5 x 23mm

M12 x 1

1шт.

13

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

14

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

15

82030788

SHIELD

1шт.
