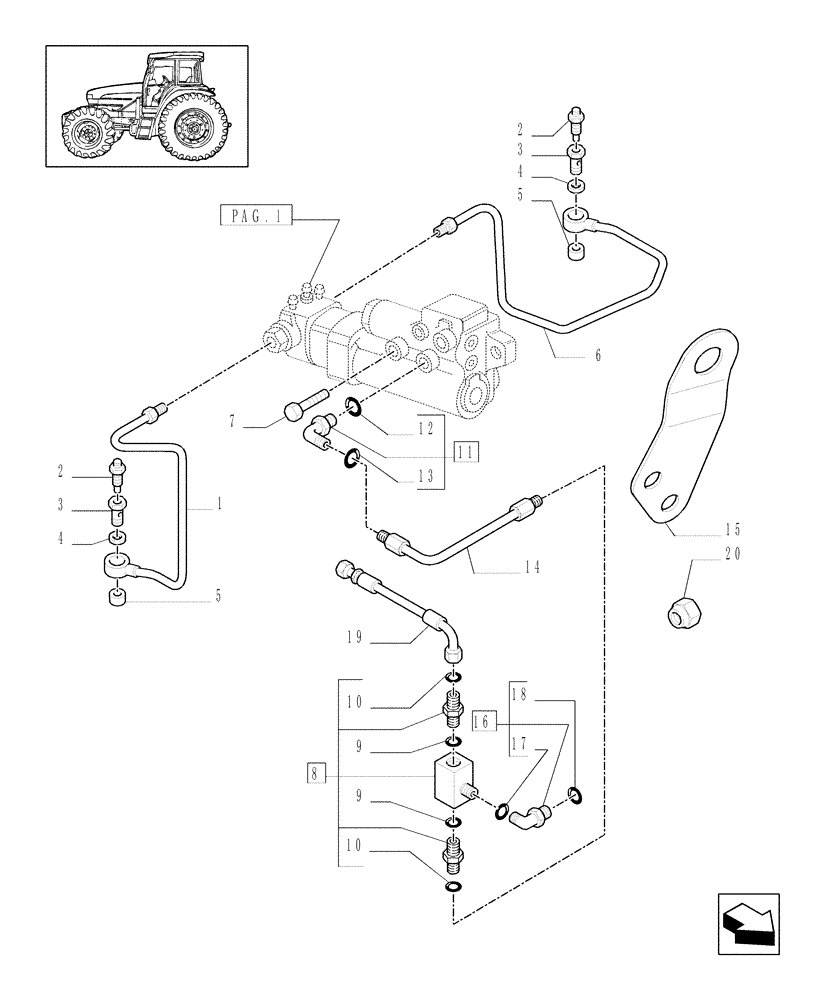

Запчасти Case IH MXM175 (1.82.713/05[02]) - (VAR.414/1) TRAILER BRAKE VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) (07) - HYDRAULIC SYSTEM

1

5196323

BRAKE LINE

1шт.

2

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

3

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

4

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

2шт.

5

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

6

5196324

BRAKE LINE

1шт.

7

14306631

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 10.9, Full Thd

1шт.

7

16044721

SCREW,Hex, M8 x 75mm, Cl 8.8

2шт.

8

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

9/16"-18UN 2A

1шт.

9

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

11

5185047

ELBOW,90 Deg, 9/16-18 ORFS x M10 x 1 ORB

M10 x 1-9/16"-18UNF 2A

1шт.

12

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

13

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

14

5198998

HYD TUBE

1шт.

15

5196322

BRACKET

1шт.

16

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

9/16"-18, 7/16"-20, Serial Range: -C5082

1шт.

16

47135296

90 ELBOW,9/16"-18 x 7/16"-20

, Start Serial: D5082

1шт.

17

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

18

5185507

O-RING,8.92mm ID x 1.83mm Width

M8.92 ID x 1.83 Thk, Serial Range: -C5082

1шт.

18

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

, Start Serial: D5082

1шт.

19

87302783

FLEXIBLE HOSE,6mm ID x 835mm L

1шт.

20

5189973

PLUG

9/16"-18

2шт.

20

47123020

PLUG,Hex

13/16"-16UN

1шт.
