Запчасти Case IH MXM175 (1.82.7/02[04]) - 4-CONTROL VALVE UNIT - D5504 (07) - HYDRAULIC SYSTEM

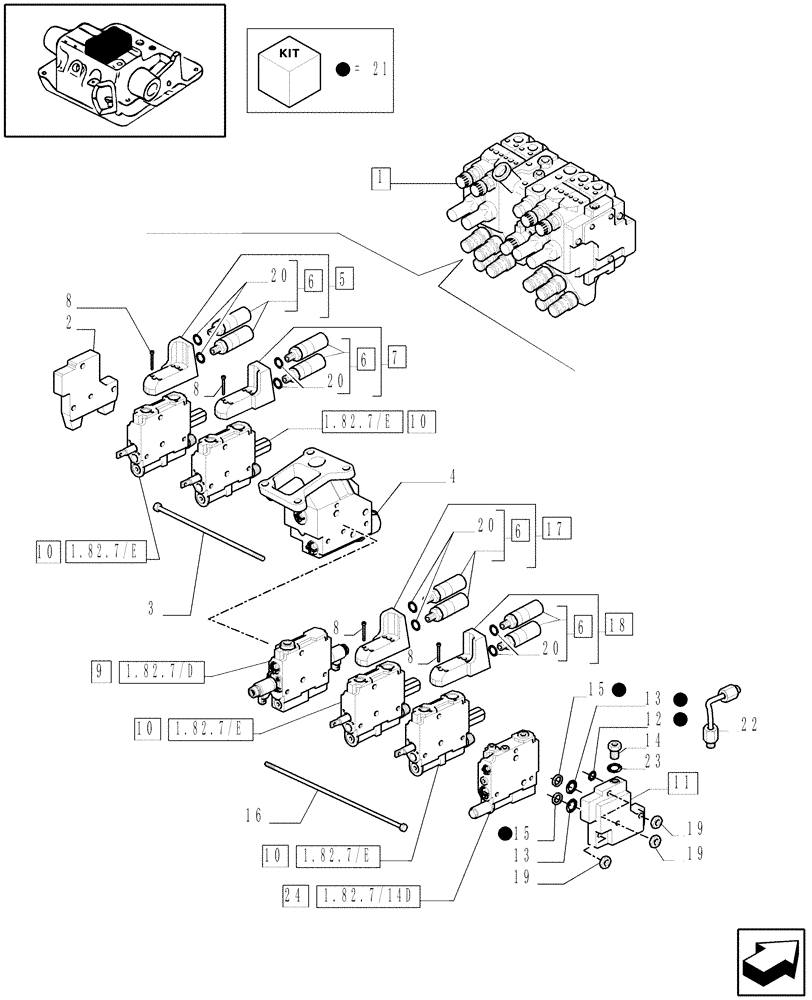

Схема запчастей Case IH MXM175 - (1.82.7/02[04]) - 4-CONTROL VALVE UNIT - D5504 (07) - HYDRAULIC SYSTEM
23
1.82.7/14d
15
8
21
5
16
1.82.7/e
6
10
1.82.7/d
12
1.82.7/e
13
10
21
6
8
21
1.82.7/e
8
17
19
24
19
21
22
4
9
7
21
1.82.7/e
3
14
18
20
8
15
6
10
20
2
20
19
13
1
10
11
20
6

Артикул

Название

Примечание

Количество

1

87551749

CONTROL VALVE

Assy

1шт.

2

5190710

PLATE

1шт.

3

5195170

BOLT

3шт.

4

47123177

BODY

Assy

1шт.

5

87381984

HYDRAULIC MANIFOLD

is faster 4bm13, Assy

1шт.

6

87381944

COUPLING, QUICK, FEM

8шт.

7

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, Assy

1шт.

8

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

16шт.

9

87553794

CONTROL VALVE

Assy

1шт.

9

87553794R

REMAN-HYD VALVE

Reman Assy

1шт.

9

87553794C

CORE-VALVE HYD

Core Return Number

1шт.

10

87526168

VALVE SECTION,Control, SB23-LS

Assy

4шт.

10

87526168R

REMAN-HYD VALVE

Reman For New PN 87526168

4шт.

10

87526168C

CORE-VALVE HYD

Return Number

4шт.

11

5195157

COVER

(12, 13, 15)

1шт.

12

81862872

O-RING,2.4mm Thk x 19.6mm ID

19.6 x 2.4

1шт.

13

5190751

O-RING,2.5mm Thk x 18mm ID

18 x 2.5

2шт.

14

5191704

CHECK VALVE

1шт.

15

5195150

BACK-UP RING

3шт.

16

47123183

STUD,M8

3шт.

17

87381982

HYDRAULIC MANIFOLD

is faster 4bm11, Assy

1шт.

18

87381981

HYDRAULIC MANIFOLD

is faster 4bm10, Assy

1шт.

19

5195169

NUT,M8

3шт.

20

14438085

O-RING,19.3mm ID x 2.4mm

8шт.

21

47126963

SEAL

1шт.

22

47126998

HYD TUBE

1шт.

23

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

24

47123176

HYD VALVE SECTION

1шт.

Выбрано товаров: 28
