Запчасти Case IH MXM175 (1.80.7/06[01A]) - (VAR.146/1) SUPP. GEAR REDUCTION UNIT FOR FULL POWER SHIFT - PTO CLUTCH - D5497 (07) - HYDRAULIC SYSTEM

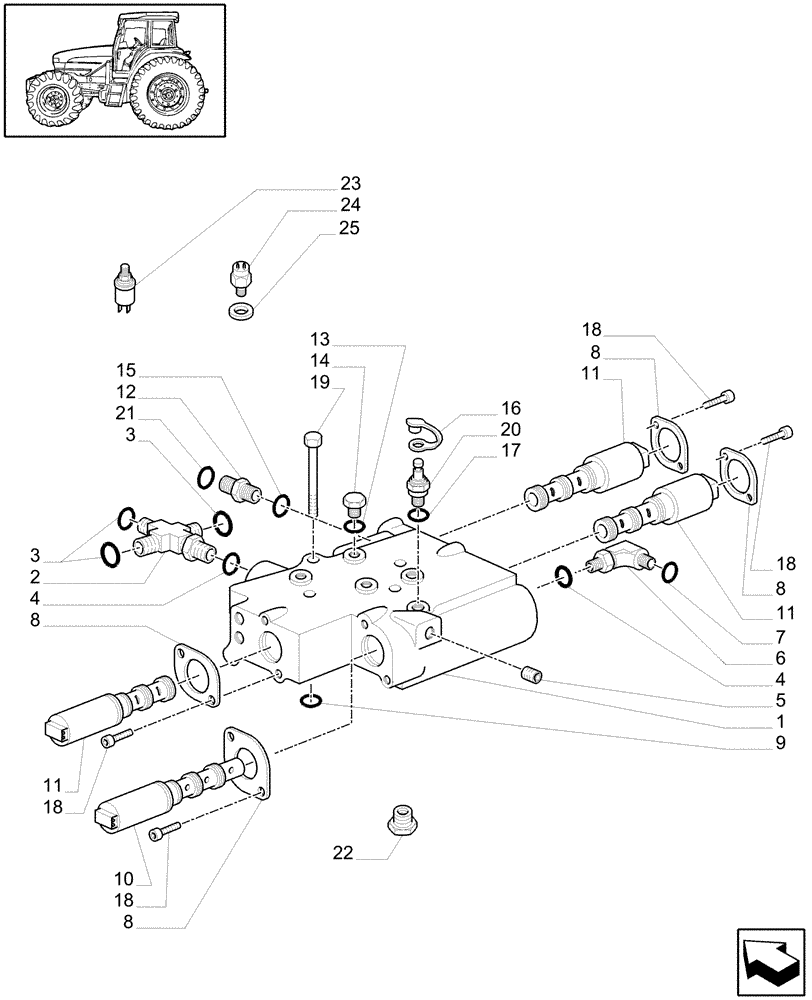

Схема запчастей Case IH MXM175 - (1.80.7/06[01A]) - (VAR.146/1) SUPP. GEAR REDUCTION UNIT FOR FULL POWER SHIFT - PTO CLUTCH - D5497 (07) - HYDRAULIC SYSTEM
8
4
2
18
11
11
13
18
15
3
23
24
4
8
14
19
11
17
1
10
12
7
18
8
3
20
5
8
9
21
16
25
22
18
6

Артикул

Название

Примечание

Количество

1

87523484

DISTRIBUTOR

Assy

1шт.

2

5187063

HYD CONNECTOR

1"-14, M22 x 1.5, Incl. 3, 4

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

5

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

5шт.

6

5194068

ELBOW

13/16"-16, M22 x 1.5, Incl. 4, 7

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

8

5194826

BRACKET

4шт.

9

14457081

O-RING,12.37mm ID x 2.62mm

7шт.

10

5196873

SOLENOID VALVE

1шт.

11

5196874

SOLENOID VALVE

3шт.

12

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

11/16"-16, M16 x 1.5, Incl. 15, 21

1шт.

13

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

4шт.

14

87535222

PLUG,Hex, M10 x 1 x 13mm

4шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

16

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

17

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

18

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

19

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

4шт.

20

5185423

COUPLING

1шт.

21

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

22

5195455

HYD CONNECTOR

M16 x 1.5

1шт.

23

82008236

SWITCH ASSY

Trans. Oil, 51 mm L.

1шт.

24

82031395

SWITCH ASSY

Trans. Oil

1шт.

25

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 25
