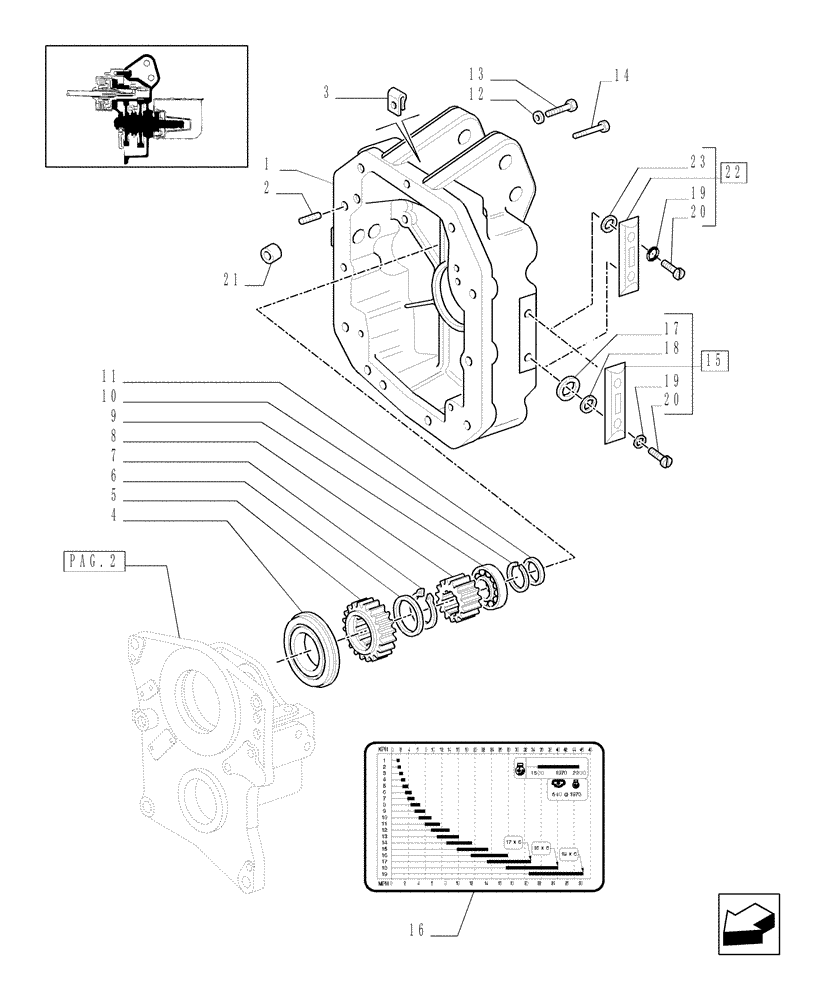

Запчасти Case IH MXM175 (1.80.1/03[03]) - (VAR.809/1) PTO 540/1000 RPM - BOX AND RELEVANT GEARS (07) - HYDRAULIC SYSTEM

1

5196861

HOUSING

Incl. 2, Serial Range: -C4943

1шт.

1

47132057

HOUSING

Incl. 21, Serial Range: D4943-ACM252702

1шт.

1

87358975

HOUSING

, Start Serial: ACM252703

1шт.

2

10839710

DOWEL,M10 x 15.00mm

, Serial Range: -C4943

2шт.

3

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

1шт.

4

5182640

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

5

5182639

DRIVING GEAR

1000 RPM

1шт.

6

5151457

THRUST WASHER,50.1mm ID x 62mm OD x 2mm Thk

D = 50.1 x 62 x 2

1шт.

7

5138419

SNAP RING,M50

1шт.

8

5182638

GEAR

540 RPM

1шт.

9

5182641

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 21mm W

1шт.

10

5154307

SNAP RING,M35

1шт.

11

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

35.1 x 43 x 2

1шт.

12

10569374

LOCK WASHER,M8

4шт.

13

14306824

HEX SOC SCREW,M8 x 1.25 x 45mm, Cl 8.8, Full Thd

4шт.

14

15981121

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

14шт.

15

47124536

INDICATOR

Assy, Serial Range: -C5171

1шт.

16

82023827

DECAL

1шт.

17

47130061

WASHER

, Serial Range: -C5171

1шт.

18

47130190

RUBBER SEAL

, Serial Range: -C5171

2шт.

19

47130060

O-RING

2шт.

20

47130059

SCREW,Pan HD, M12 x 41mm

2шт.

21

44908048

BUSHING,16mm OD x 14mm L

, Start Serial: D4943

2шт.

22

87348844

INDICATOR

, Start Serial: D5171

1шт.

23

87349969

RUBBER SEAL

, Start Serial: D5171

2шт.
