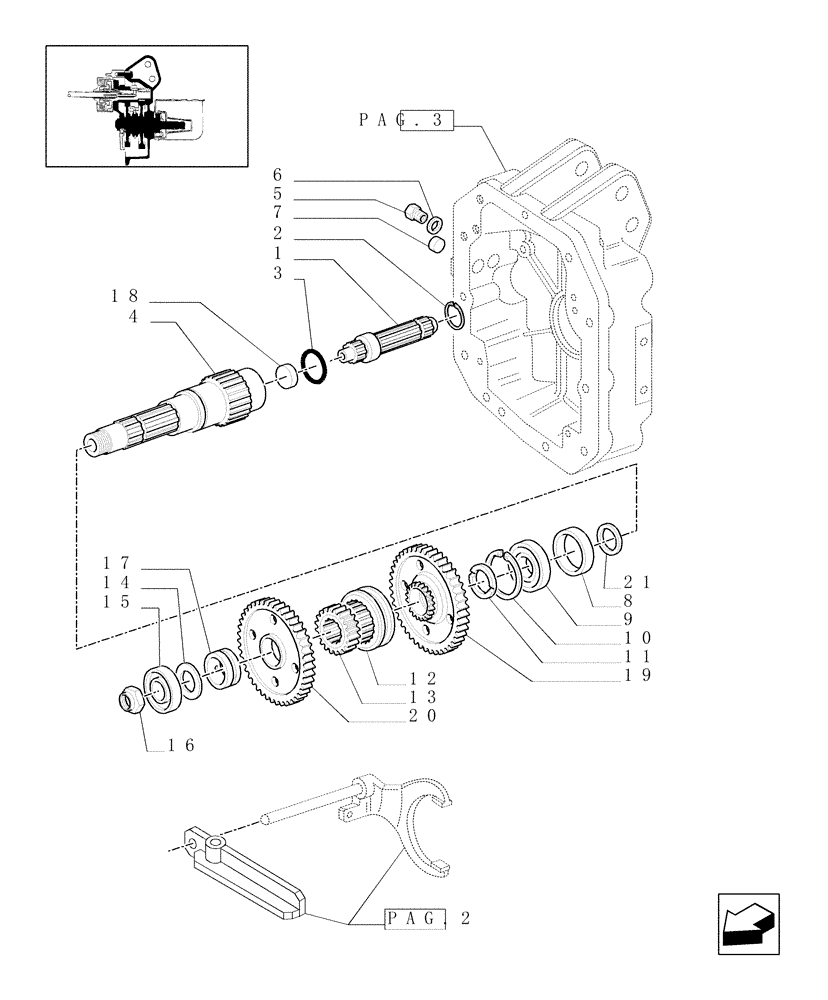

Запчасти Case IH MXM175 (1.80.1/03[01]) - (VAR.809/1) PTO 540/1000 RPM - SHAFTS AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

1

47130743

PTO SHAFT,6T Splines, 182mm L

540 RPM

1шт.

1

47130744

PTO SHAFT,21T, 20T, 182mm L

1000 RPM

1шт.

2

47131547

CIRCLIP

1шт.

3

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

4

5196858

SHAFT

, Serial Range: -C4943

1шт.

4

47131841

SHAFT

, Start Serial: D4943

1шт.

5

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

1шт.

6

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

7

14328701

PLUG,M20, Tapered

1шт.

8

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

1шт.

9

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

1шт.

10

11076176

SNAP RING,M125, Int

1шт.

11

11070376

SNAP RING,M70, Ext

, Serial Range: -C4943

1шт.

11

47132124

CIRCLIP,M70

, Start Serial: D4943

2шт.

12

5145798

SYNCHRONIZER,24T

1шт.

13

5145826

DRIVE BUSHING

1шт.

14

5182629

ANTI-WRAP PLATE

45.1 x 70 x 8

1шт.

15

5182627

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

1шт.

16

5123114

RING NUT,Hex, M36 x 1.5

M36 x 1.5

1шт.

17

5151437

BUSHING,44.4mm ID x 55mm OD x 35mm L

1шт.

18

5179204

PLUG,20.27mm OD x 6.38mm W

1шт.

19

5196857

GEAR

540 RPM

1шт.

20

5182636

DRIVING GEAR

1000 RPM, 56 Teeth

1шт.

21

47131852

RETAINER,70.5mm ID x 86mm OD x 4mm Thk

D=70, Start Serial: D4943

1шт.
