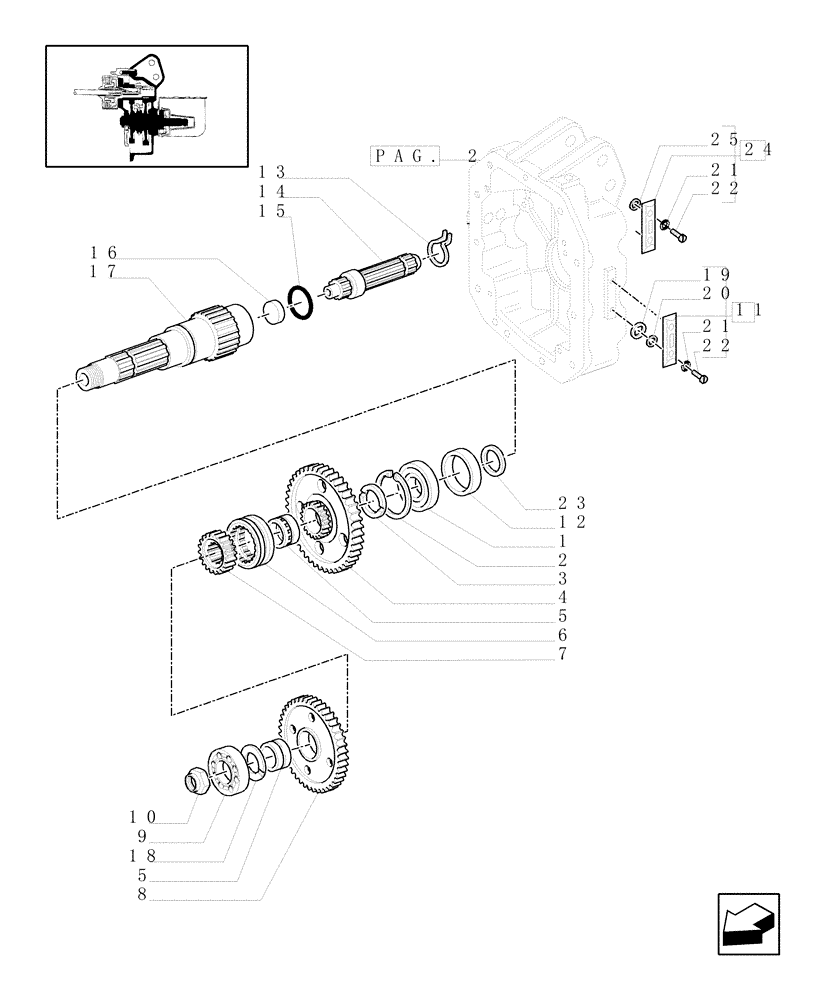

Запчасти Case IH MXM175 (1.80.1/01[01]) - POWER TAKE-OFF 750/1000 RPM (07) - HYDRAULIC SYSTEM

1

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

1шт.

2

11076176

SNAP RING,M125, Int

1шт.

3

11070376

SNAP RING,M70, Ext

, Serial Range: -C4943

2шт.

3

47132124

CIRCLIP,M70

, Start Serial: D4943

2шт.

4

5196855

DRIVING GEAR

1шт.

5

5151437

BUSHING,44.4mm ID x 55mm OD x 35mm L

2шт.

6

5129513

SYNCHRONIZER,24T

1шт.

7

5151488

DRIVE BUSHING

1шт.

8

5182636

DRIVING GEAR

56 Teeth

1шт.

9

5182627

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

1шт.

10

5123114

RING NUT,Hex, M36 x 1.5

M36 x 1.5

1шт.

11

47124536

INDICATOR

Assy, Serial Range: -C5171

1шт.

12

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

1шт.

13

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

14

47130743

PTO SHAFT,6T Splines, 182mm L

540 RPM

1шт.

1-3/8" 6 Teeth

1шт.

14

47130744

PTO SHAFT,21T, 20T, 182mm L

1000 RPM

1шт.

1-3/8" 21 Teeth

1шт.

14

47132584

PTO SHAFT

1000 RPM, 1-3/4", 20 teeth

1шт.

1-3/4" 20 teeth

1шт.

15

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

16

5179204

PLUG,20.27mm OD x 6.38mm W

1шт.

17

5196858

SHAFT

, Serial Range: -C4943

1шт.

17

47131841

SHAFT

, Start Serial: D4943

1шт.

18

5182629

ANTI-WRAP PLATE

1шт.

19

47130061

WASHER

1шт.

20

47130190

RUBBER SEAL

2шт.

21

47130060

O-RING

, Serial Range: -C5171

2шт.

22

47130059

SCREW,Pan HD, M12 x 41mm

, Serial Range: -C5171

2шт.

23

47131852

RETAINER,70.5mm ID x 86mm OD x 4mm Thk

D=70

1шт.

24

87348844

INDICATOR

, Start Serial: D5171

1шт.

25

87349969

RUBBER SEAL

, Start Serial: D5171

2шт.
