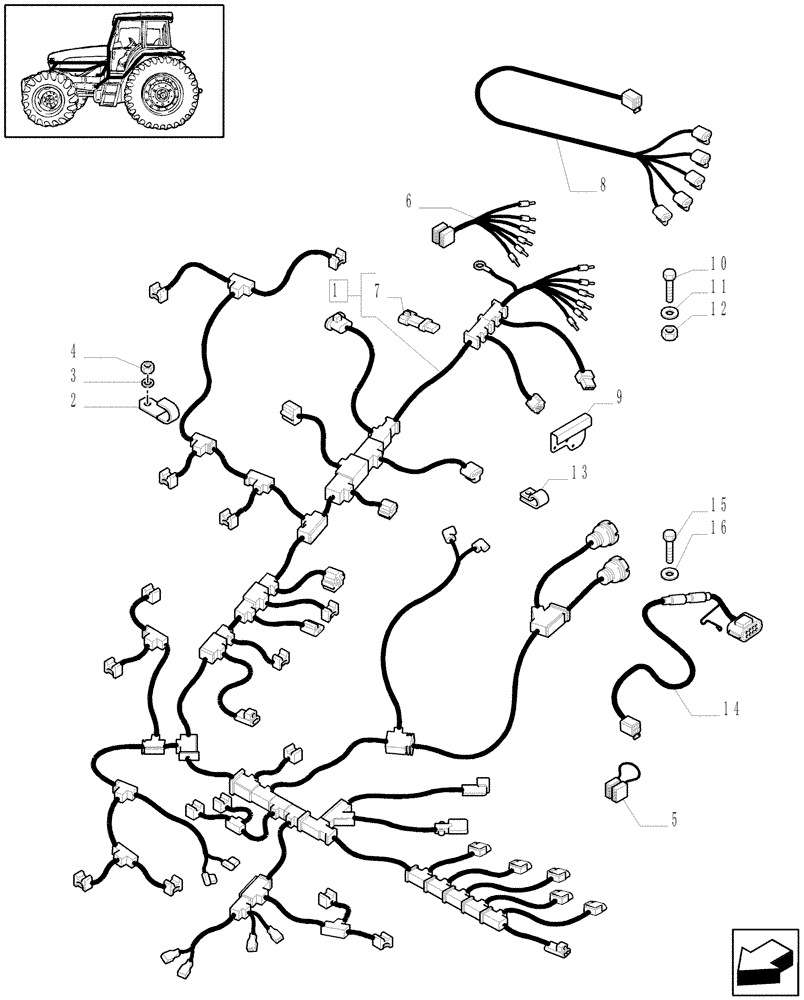

Запчасти Case IH MXM175 (1.75.4[01A]) - ELECTRICAL SYSTEM CABLES - D5443 (06) - ELECTRICAL SYSTEMS

1

87399675

WIRE HARNESS

MXM120, MXM130, MXM140, MXM155

1шт.

1

82028415

WIRE HARNESS

MXM175, MXM190

1шт.

1

87520235

WIRE HARNESS

MXM120, MXM130, MXM140, MXM155

1шт.

W/Semi Power Shift

1шт.

1

87520243

WIRE HARNESS

MXM120, MXM130, MXM140

1шт.

W/HI-LO trans. 24 x 12 (40kph) Equip. 272

1шт.

1

87520240

WIRE HARNESS

MXM120, MXM130, MXM140, MXM155

1шт.

W/Full Power Shift Trans. 18 x 6 (40KPH 4WD) Equip. 281

1шт.

1

87520237

WIRE HARNESS

MXM175, MXM190

1шт.

W/Full Power Shift Trans. less EHR

1шт.

1

87520238

WIRE HARNESS

MXM175, MXM190

1шт.

W/Full Power Shift Trans. with EHR and with 4TH and 5TH Remote Valve Equip. 252-718

1шт.

2

5171792

CLAMP

1шт.

3

82879382

WASHER

1шт.

4

89706690

NUT,M8, Cl 8

1шт.

5

82014331

WIRE HARNESS

Ground Speed PTO Link

1шт.

6

82023144

WIRE HARNESS

1шт.

7

82036572

WIRE HARNESS,120 ohm

1шт.

8

82026063

WIRE HARNESS

1шт.

W/Equip.900 Hydr. Adjust. for Top Link and RH Lift-Rod for CCLS

1шт.

9

82038676

SHIELD

1шт.

Viscotronic Fan

1шт.

10

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

Viscotronic Fan

1шт.

11

12640604

WASHER,6.15mm ID x 25mm OD x 2mm Thk

2шт.

Viscotronic Fan

1шт.

12

10789611

NUT

1шт.

Viscotronic Fan

1шт.

13

10418405

CLAMP

1шт.

Viscotronic Fan

1шт.

14

87398532

WIRE HARNESS

1шт.

15

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

16

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.
