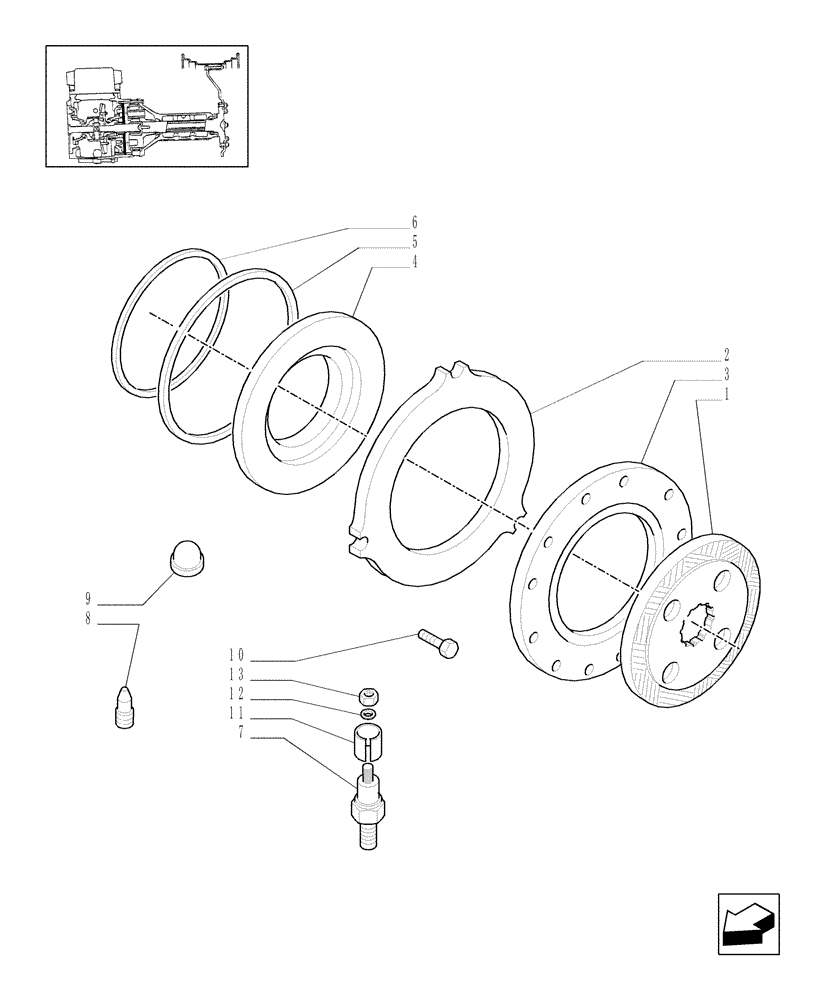

Запчасти Case IH MXM175 (1.65.3/01[02]) - TRANSMISSION BRAKES (05) - REAR AXLE

1

47126358

BRAKE DISC,60mm ID x 327mm OD x 9.6mm Thk

4шт.

2

5185950

BRAKE DISC,245mm ID x 368mm OD x 22mm Thk

2шт.

3

5185968

BRAKE DISC,245mm ID x 400mm OD x 29mm Thk

2шт.

4

5195093

PISTON

2шт.

5

5165512

SEAL,Square, 3.4mm Thk x 329.8mm ID, 80 Duro

2шт.

6

5195253

SEAL,Square, 3.4mm Thk x 294.1mm ID, 80 Duro

2шт.

7

5195192

PIN

1шт.

8

5152383

DRAIN PLUG,M12 x 1.25 x 24mm

2шт.

9

5171793

BOOT

, Serial Range: -C5965

2шт.

10

14274934

SCREW,M12 x 1.25 x 50mm

M12 x 1.25 x 50

24шт.

11

5187998

BUSHING

1шт.

12

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

13

14048221

NUT,M8 x 1.25, Cl 10

1шт.
