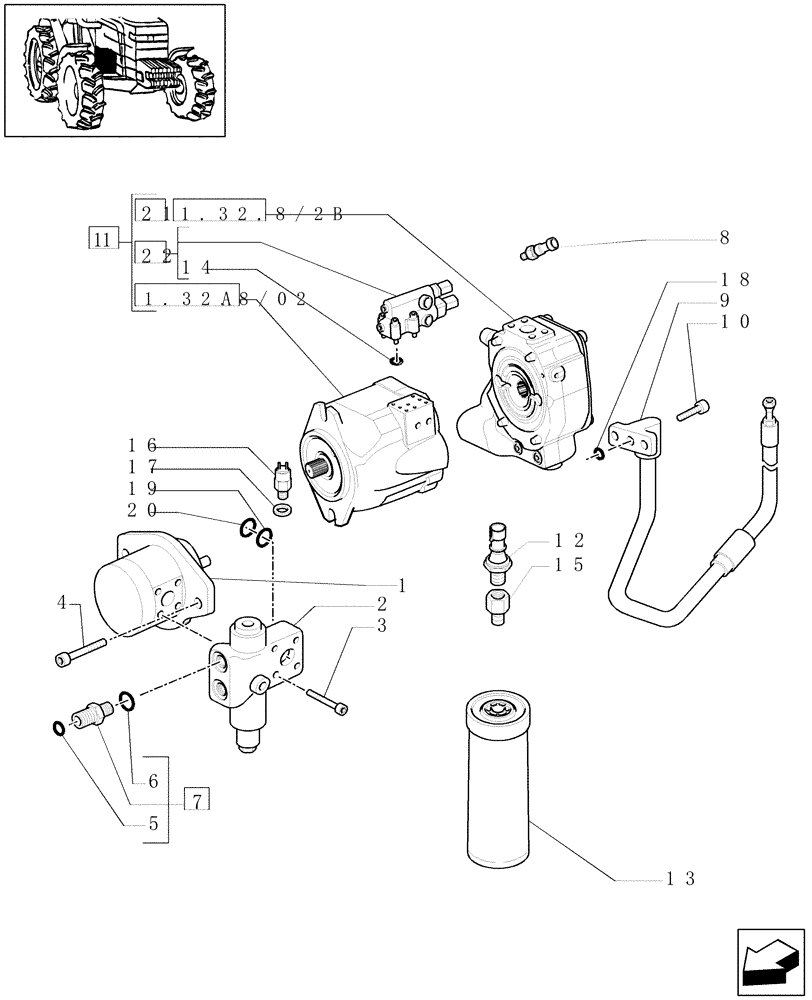

Запчасти Case IH MXM175 (1.32.8/02[06]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION

1

47129423

HYDRAULIC PUMP,25 CC

1шт.

47129423R

REMAN-HYD PUMP

MXM175, MXM190 BOTH (6/02-)

1шт.

47129423C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

5188291

HYDRAULIC VALVE

Incl. 19, 20

1шт.

3

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

4шт.

4

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

1шт.

8

82028134

SWITCH ASSY

Oil Temperature

1шт.

9

47130374

PIPE

1шт.

10

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

5198694

HYDRAULIC PUMP,45 CC

45CC

1шт.

11

5198694R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

11

5198694C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

12

82028130

PRESSURE SWITCH

, Serial Range: -ACM263457

1шт.

12

87564684

SWITCH ASSY

Oil Pressure, Start Serial: ACM263458

1шт.

13

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

1шт.

14

47127305

O-RING

3шт.

15

81866305

ADAPTER,1/4" NPT x M10 x 1 ORB

1шт.

16

5157750

PRESSURE SWITCH

Oil Pressure

1шт.

17

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

18

14462880

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

19

5190751

O-RING,2.5mm Thk x 18mm ID

1шт.

20

47127103

BACK-UP RING

1шт.

21

47127269

PUMP

1шт.

22

47127261

REGULATOR

1шт.
