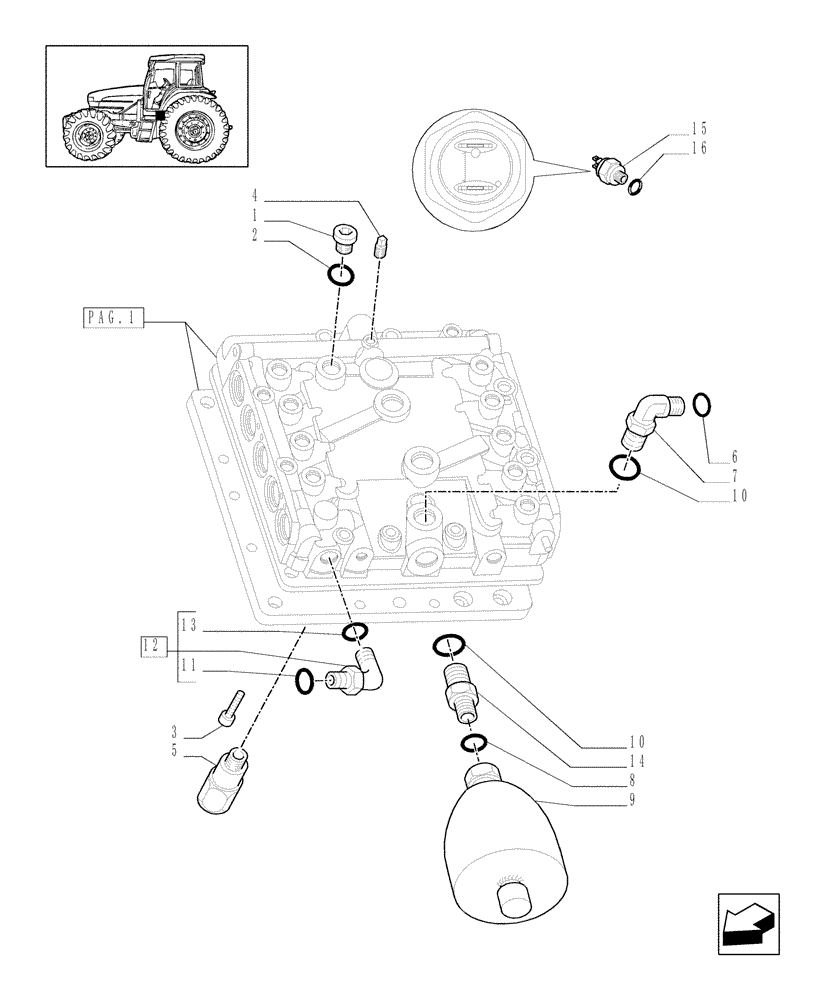

Запчасти Case IH MXM175 (1.32.2/06[02]) - (VAR.571) FULL POWER SHIFT GEAR CHANGE 19X6 (40 KM/H) - CENTRAL GEAR REDUCTION CONTROLS (03) - TRANSMISSION

1

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

2

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

3

14306331

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

4

14324011

PLUG,Taper Pipe, Sq Hd, M10 x 1 x 14mm, Cl 5.8

M10 x 1

1шт.

5

5198572

VALVE

Lubricator

1шт.

6

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

1"-14, M22 x 1.5, Incl. 17, 21

1шт.

8

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

9

5195043

ACCUMULATOR,0.75L

1шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

11

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

12

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Incl. 11, 13

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

14

5186462

HYD CONNECTOR,M18 x 1.5 x 43.5mm

1шт.

15

87395493

PRESSURE SWITCH

Trans. Oil

1шт.

16

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.
