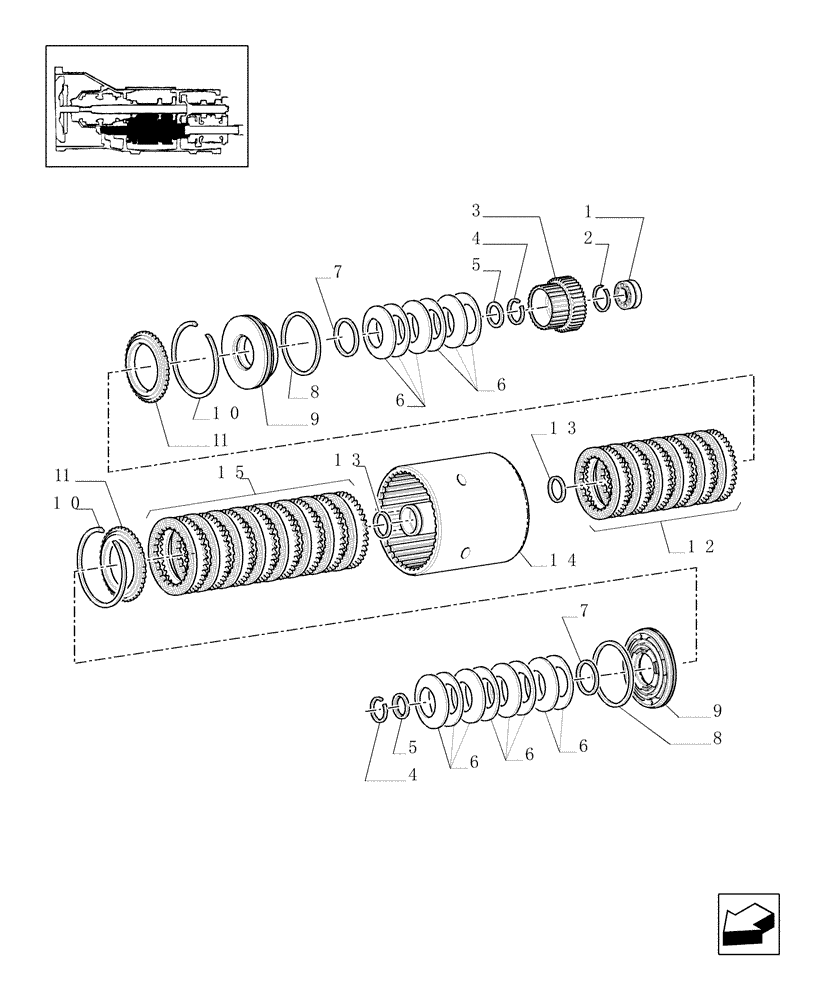

Запчасти Case IH MXM175 (1.28.7/01[06]) - CLUTCH ENGAGEMENT (03) - TRANSMISSION

1

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

50 x 80 x 32

1шт.

2

5162623

CIRCLIP,80mm ID

1шт.

3

5183136

GEAR

III IV Speed

1шт.

4

5175981

CIRCLIP,1.5mm Thk

2шт.

5

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

2шт.

6

5164927

SPRING

, Serial Range: -C5486

14шт.

6

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

, Start Serial: D5486

14шт.

7

5164926

RING

, Serial Range: -C5486

2шт.

7

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

, Start Serial: D5486

2шт.

8

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

2шт.

9

5187977

PISTON

, Serial Range: -C5486

2шт.

9

87547824

PISTON

, Start Serial: D5486

2шт.

10

5162251

CIRCLIP,142.5mm ID

2шт.

11

5167824

DISC,113.5mm ID x 154.35mm OD x 7.5mm Thk

2шт.

12

5167875

KIT

Clutch Plates, Serial Range: -C5603

1шт.

12

87530788

CLUTCH PACK

Clutch Plates, Start Serial: D5603

1шт.

13

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

2шт.

14

5167835

HOUSING

1шт.

15

5165058

KIT

Clutch Plates, Serial Range: -C5603

1шт.

15

87530789

CLUTCH PACK

Clutch Plates, Start Serial: D5603

1шт.
