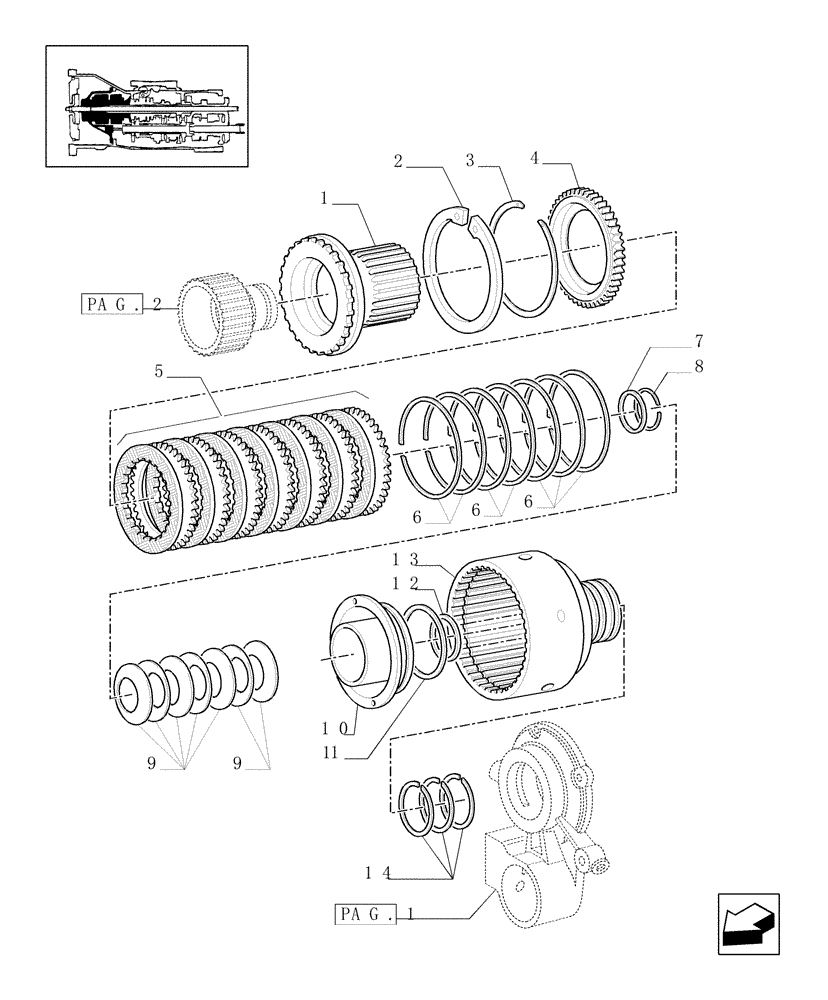

Запчасти Case IH MXM175 (1.28.7/01[03]) - CLUTCH ENGAGEMENT (03) - TRANSMISSION

1

5171871

HUB

1шт.

2

11078676

SNAP RING,M175, Int

1шт.

3

5122844

SNAP RING,168mm, 2mm Thk, Int

1шт.

4

5122821

THRUST PLATE,53T, 173mm OD

1шт.

5

5172227

CLUTCH OVERHAUL KIT

Clutch Plates, Serial Range: -C5603

1шт.

5

87530795

CLUTCH OVERHAUL KIT

Clutch Plates, Start Serial: D5603

1шт.

6

5166536

SPRING,173mm OD x 1.27mm Thk

7шт.

7

5162263

RETAINER CUP,68mm ID x 78mm OD x 3mm Thk

1шт.

8

5162253

CIRCLIP,2mm Thk

2шт.

9

5162331

SPRING

, Serial Range: -C5486

7шт.

9

87547943

SPRING,Belleville, 68mm ID x 1.9mm Thk

, Start Serial: D5486

7шт.

10

5171873

PISTON,80mm ID x 152mm OD x 30.5mm Thk

1шт.

11

5172235

GASKET,144.55mm ID x 152.06mm OD x 3.2mm Thk

1шт.

12

5160154

GASKET,79.97mm ID x 87.5mm OD x 3.2mm Thk

1шт.

13

5179509

HOUSING

1шт.

14

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

SEALRING

3шт.
