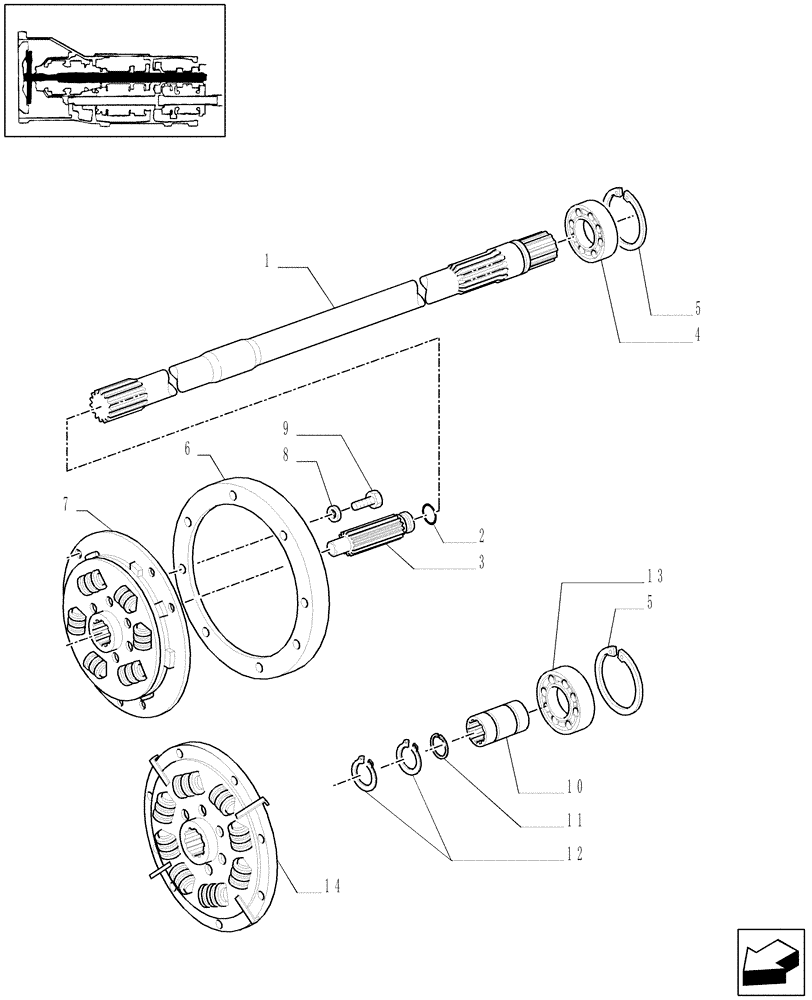

Запчасти Case IH MXM175 (1.25.3/02) - CLUTCH - PTO (03) - TRANSMISSION

1

5197516

SHAFT

PTO

1шт.

2

14463381

O-RING,26.57mm ID x 3.52" Width

1шт.

3

5185497

SHAFT

1шт.

4

5188843

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

40 x 90 x 23

1шт.

5

11062476

SNAP RING,M90, Int

3шт.

6

47125891

ENGINE FLYWHEEL

1шт.

7

87302871

DAMPER

, Serial Range: -C5763

1шт.

87542609R

REMAN-CLUTCH PLATE

MXM175, MXM190 Both Serial Range: -C5763 (6/02-),Reman for new P/N 87302871

1шт.

87542609C

CORE-CLUTCH PLATE

Return Number

1шт.

8

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

M12 x 24

8шт.

9

16208430

BOLT,Hex, M12 x 1.25 x 65mm, Cl 10.9

8шт.

10

5195206

SPLINED COUPLING,11T

1шт.

11

11058676

SNAP RING,M28, Int

1шт.

12

11069376

SNAP RING,M50, Ext

2шт.

13

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

50 x 90 x 20 mm

1шт.

14

87542609

DAMPER,348mm OD

, Start Serial: D5763

1шт.

87542609R

REMAN-CLUTCH PLATE

MXM175, MXM190 Both Start Serial: D5763 (6/02-)

1шт.

87542609C

CORE-CLUTCH PLATE

Return Number

1шт.
