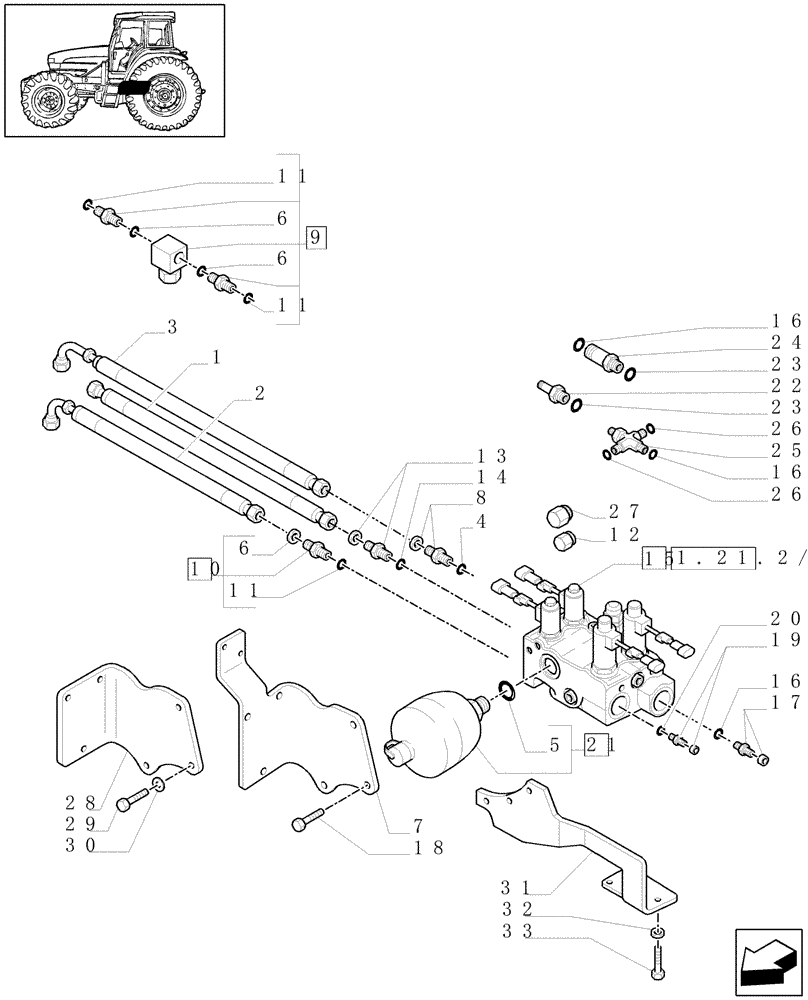

Запчасти Case IH MXM175 (1.21.2/03[02]) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - VALVE AND PIPES (03) - TRANSMISSION

1

5199909

HYDRAULIC HOSE

Trailer Brake Main Pressure

1шт.

2

47130244

FLEXIBLE HOSE

Hydraulic Pump-Return

1шт.

3

87302781

FLEXIBLE HOSE

Hydraulic Pump-Load Sense

1шт.

4

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

90 Duro, .489" ID x .070" Thk

2шт.

5

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

6

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

7

5199471

BRACKET

, Serial Range: -C4832

1шт.

8

82019684

HYD CONNECTOR,13/16-16 ORFS x M16 x 1.5 ORB

13/16"-16 UN-2A/M16 x 1.5

1шт.

9

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

10

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

9/16"-18 UN-2A/M10 x 1

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

12

47123020

PLUG,Hex

13/16" - 16UN

1шт.

13

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

11/16"-16 UN-2A/M14 x 1.5

1шт.

14

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

1шт.

15

5197683

HYDRAULIC VALVE

Suspension Control, Serial Range: -ACM222663

1шт.

47135723R

REMAN-HYD VALVE

MXM175,MXM190 BOTH SERIAL RANGE: -ACM222663 (6/02-), Reman For New P/N 5197683

1шт.

47135723C

CORE-VALVE HYD

Return Number

1шт.

15

47135723

HYDRAULIC VALVE

Suspension Control, Start Serial: ACM222664

1шт.

47135723R

REMAN-HYD VALVE

MXM175,MXM190 BOTH START SERIAL: ACM222664 (6/02-)

1шт.

47135723C

CORE-VALVE HYD

Return Number

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

17

47125482

HYD CONNECTOR

1"-14 UN-2A/M27 x 2

1шт.

18

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

19

82019639

HYD CONNECTOR

13/16"-12 UN-2A/M27 x 2

1шт.

20

89991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

90 Duro, .750" ID x .070" Thk

1шт.

21

82025705

ACCUMULATOR

1шт.

22

5198832

HYD CONNECTOR

M22 x 1.5

1шт.

23

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

24

5199935

HYD CONNECTOR

1шт.

25

5199116

4 WAY CONNECTION

1шт.

26

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

2шт.

27

47123019

PLUG

1"-14

1шт.

28

47126508

SUPPORT

, Start Serial: D4832

1шт.

29

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

, Start Serial: D4832

3шт.

30

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

D=10, Start Serial: D4832

3шт.

31

87532941

BRACKET

, Start Serial: D5349

1шт.

32

10615779

LOCK WASHER,Ext Tooth, M10

, Start Serial: D5349

3шт.

33

16054724

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

, Start Serial: D5349

3шт.
