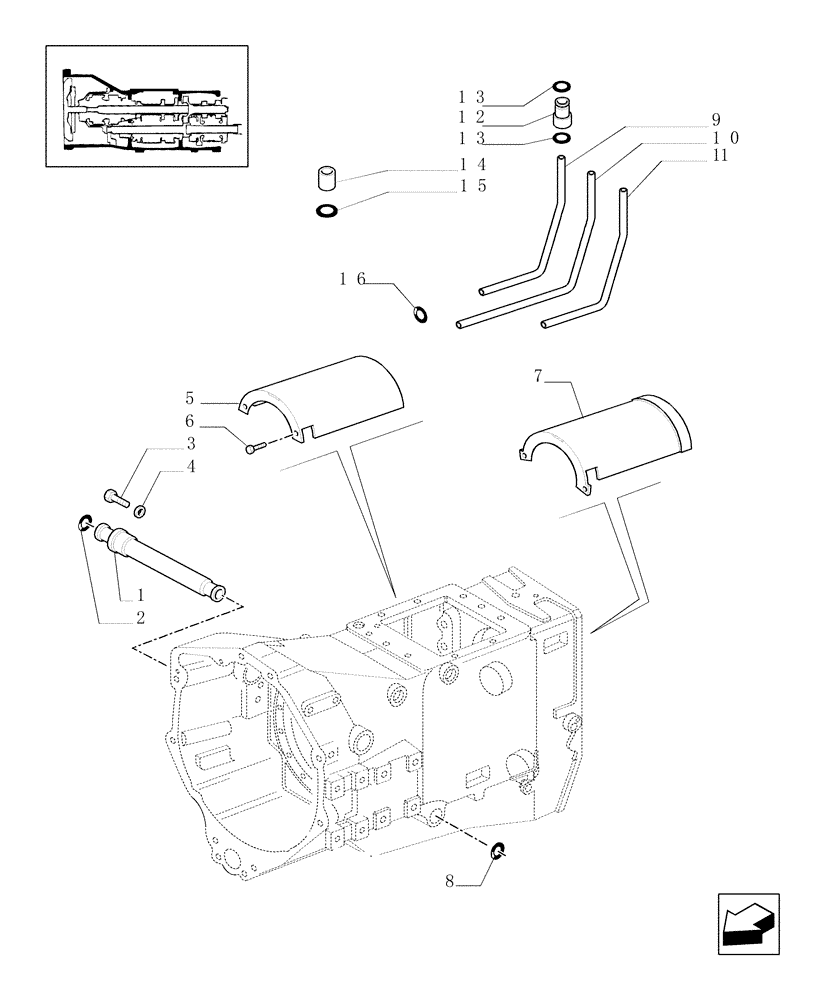

Запчасти Case IH MXM175 (1.21.0/01[02]) - HOUSING, GEARS (03) - TRANSMISSION

1

5172331

TUBE

1шт.

2

14464681

O-RING,56.74mm ID x 2.512" OD x 3.53mm

1шт.

3

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

4

12646204

WASHER,8.15mm ID x 35mm OD x 3mm Thk

1шт.

5

5199515

GUARD

Rear Splash

1шт.

6

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

7

5199512

GUARD

Front Splash

1шт.

8

14464580

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

9

5186835

TUBE

1шт.

10

5186834

TUBE

1шт.

11

5186836

TUBE

1шт.

12

5198658

BUSHING

3шт.

13

5103230

O-RING,2.62mm Thk x 11.91mm ID

6шт.

14

5178778

SPACER,11mm ID x 15mm OD x 15mm L

6шт.

15

14457281

O-RING,0.612" ID x 0.103" Width

6шт.

16

14457081

O-RING,12.37mm ID x 2.62mm

7шт.
