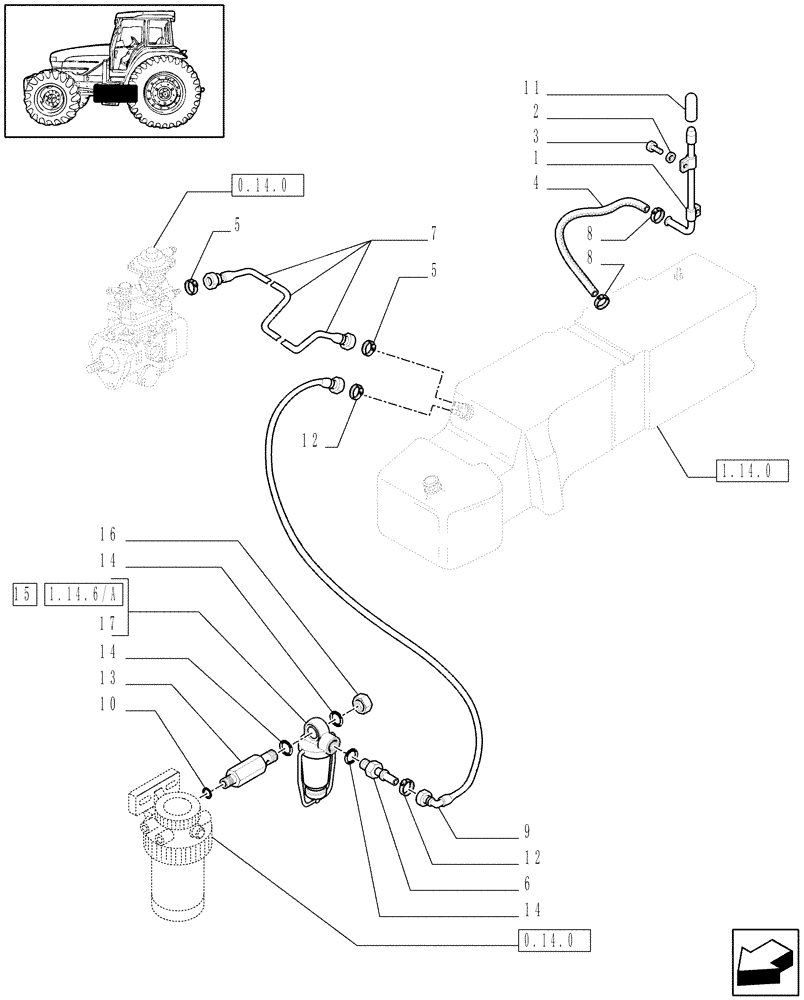

Запчасти Case IH MXM155 (1.14.6[01A]) - FUEL LINES - D5398 (02) - ENGINE EQUIPMENT

1

82023228

TUBE,332 mm Length

1шт.

2

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

3

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

4

82023229

TUBE,15.90 mm ID x 640.00 mm

1шт.

5

80529070

COLLAR

2шт.

6

87580729

FITTING

M14 x 1.5

1шт.

7

87389056

RETURN PIPE

1шт.

7

82013691

FLEXIBLE HOSE,9.5mm ID x 1850mm L, SAE 30R7

1шт.

W/Equip. 244, 245/1, 440, 440/2, 444, 714/1, Joystick for Loader

1шт.

8

82039343

HOSE CLAMP,16mm - 27mm

2шт.

9

87592441

TUBE,10 mm OD x 925, 50 mm L

925 mm

1шт.

10

83904845

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

7/16" ID x .07 Thk

1шт.

11

82012157

PLUG

1шт.

12

82039341

CLAMP,12mm - 22mm

2шт.

13

87580713

HYD CONNECTOR

1/2" - 20, M14 x 1.5

1шт.

14

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

3шт.

15

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

ASSY., Biodiesel compatible, Start Serial: D6809

1шт.

16

10182817

BANJO BOLT,M14 x 1.5, 2-Way

1шт.

17

87592298

FILTER ASSY

, Serial Range: -C6809

1шт.
