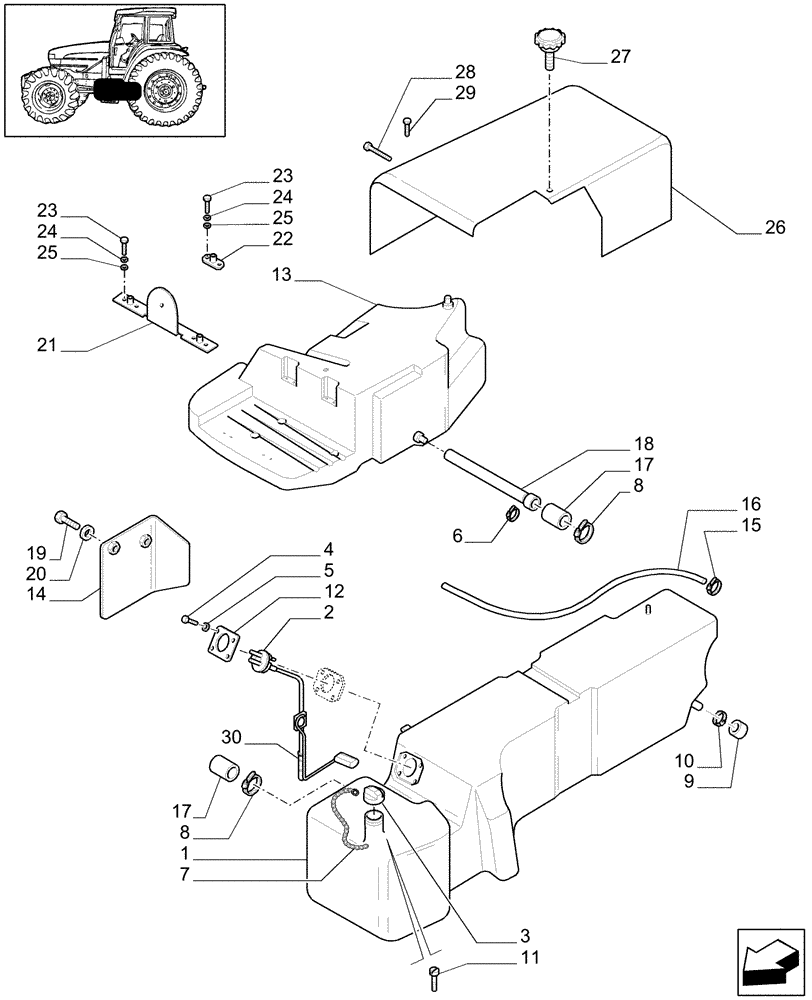

Запчасти Case IH MXM155 (1.14.0[01A]) - FUEL TANK - D5132 - C5317 (02) - ENGINE EQUIPMENT

1

87341146

FUEL TANK

Main, Incl. 2-5, 7-12, 17

1шт.

1

87341144

FUEL TANK

Main, Incl. 2-5, 7, 9-12

1шт.

W/HI-LO trans. 24 x 12 (40 kph) Equip. 272

1шт.

2

87341202

SENDER UNIT

Fuel Level, Includes Ref. 30

1шт.

3

82012210

FILLER CAP

1шт.

4

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

4шт.

5

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

6

82039343

HOSE CLAMP,16mm - 27mm

1шт.

7

82012533

LINK CHAIN

1шт.

8

82030095

COLLAR

2шт.

9

83998666

CAP

1шт.

10

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

1шт.

11

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

M6 x 13

3шт.

12

87341216

PLATE

1шт.

13

82034184

FUEL TANK

Aux, Incl. 8, 17, 18, 21-25

1шт.

13

82032392

Aux, Incl. 21-25

1шт.

W/HI-LO trans. 24 x 12 (40 kph) Equip. 272

1шт.

14

82006792

BRACKET

1шт.

15

82039341

CLAMP,12mm - 22mm

1шт.

16

82012599

FUEL HOSE,15.9mm ID x 800mm L

1шт.

17

82034182

HOSE

2шт.

17

82008485

FUEL HOSE,48.00 mm ID x 80.00 mm, SAE J200

MXM120, MXM130, MXM140

2шт.

W/HI-LO trans. 24 x 12 (40 kph) Equip. 272

1шт.

18

82015006

TUBE,38 - 48 mm OD, 360 mm Length

1шт.

18

82011031

TUBE,38 - 48 mm OD, 483, 330 mm Length

MXM120, MXM130, MXM140

1шт.

W/HI-LO trans. 24 x 12 (40 kph) Equip. 272

1шт.

19

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

20

10516674

LOCK WASHER,M8

2шт.

21

82023718

BRACKET

1шт.

22

82023719

BRACKET

2шт.

23

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

8шт.

24

14496404

WASHER,M6 x 12 x 2 Thk

8шт.

25

12035670

LOCK WASHER

M6

8шт.

26

82026117

COVER ASSY

1шт.

27

82000463

KNOB

M6 x 15, Male Thread

2шт.

28

15215421

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

1шт.

29

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

30

82026276

FUEL FILTER

1шт.
