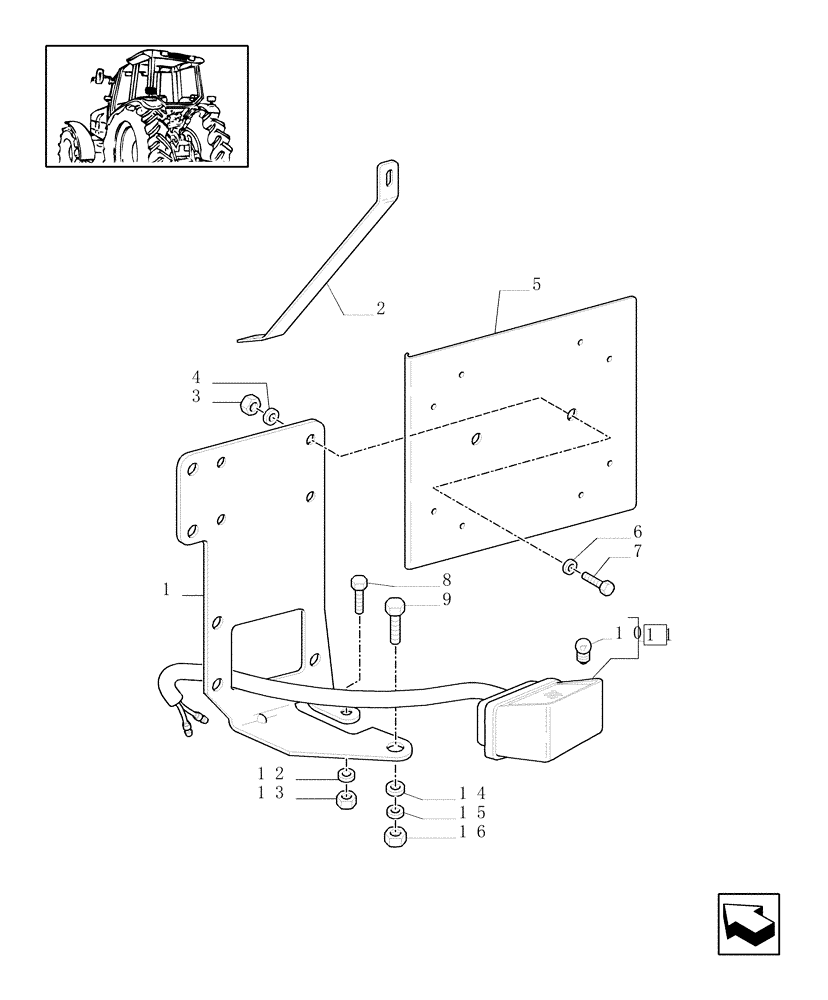

Запчасти Case IH MXM155 (1.98.3/01) - (VAR.965) LICENSE PLATE LAMP & SUPPORT, MOUNTING ON MUDGUARD (10) - OPERATORS PLATFORM/CAB

1

82030285

SUPPORT

1шт.

2

47124276

TIE-ROD

1шт.

3

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

4

12035670

LOCK WASHER

M6

2шт.

5

5170366

PLATE

1шт.

6

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

2шт.

7

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

2шт.

8

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

9

80300388

SCREW,M12 x 25mm

Cap, HH, CL 8.8, M12 x 1.75 x 25

1шт.

10

81867061

BULB,12V, 21W

Type R19, 10W

1шт.

11

82000705

NUMBER PLATE LAMP,12V, 10W

1шт.

12

10516674

LOCK WASHER,M8

1шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

14

82011888

WASHER

1шт.

15

10517074

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

1шт.

16

11702921

NUT,M12, Cl 10

1шт.
