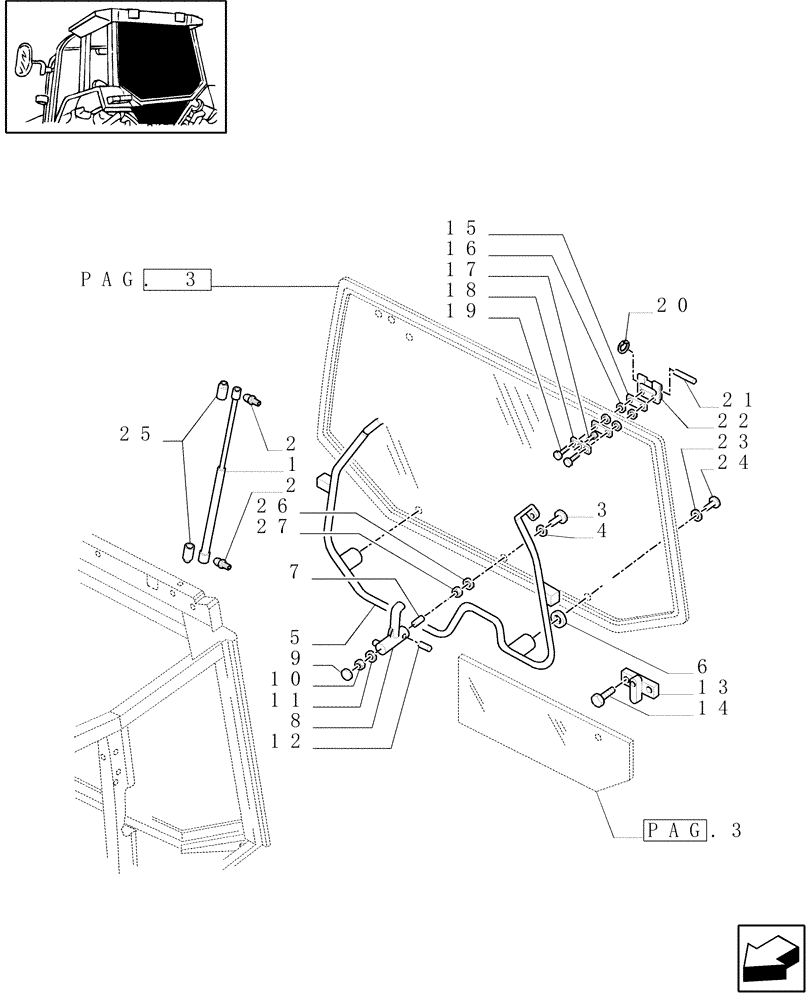

Запчасти Case IH MXM155 (1.92.4[02]) - CAB GLASS AND RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB

1

82019393

GAS STRUT,585.5mm Extended, 335.5mm Compressed

2шт.

2

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

2шт.

3

83995345

PIN

M12 x 1.75 x 50

1шт.

4

81865223

SEALING WASHER,12.8mm ID x 36mm OD x 6.5mm Thk

2шт.

5

82013085

HANDLE

1шт.

6

83995286

SEALING WASHER,M12.5 x 35 x 3 Thk

1шт.

7

83995351

SPACER,12mm ID x 16mm OD x 24.1mm L

1шт.

8

87541759

HANDLE

1шт.

9

83961986

PLUG,30mm

1шт.

10

81853287

NUT,M12 x 1.75, Cl 8

1шт.

11

14499604

WASHER,13mm ID x 20mm OD x 2.5mm Thk

1шт.

12

81865250

PIN,4.3mm OD x 31.45mm L

1шт.

13

82000487

LATCH

2шт.

14

15909401

SELF-TAP SCREW,Cross Oval Hd, M3.5 x 19

4шт.

15

81865253

SEAL

4шт.

16

81865261

WASHER,6.8mm ID x 12mm OD x 3mm Thk

4шт.

17

13303514

SCREW,Pozidriv Flat Hd, M8 x 20mm, Cl 5.8

2шт.

18

81873554

SPACER

2шт.

19

82007919

SCREW,Phillips Drive, Pan HD, M6 x 20mm

M6 x 20

4шт.

20

11087871

CIRCLIP,M7

2шт.

21

82014487

PIN,12mm OD x 83.34mm L

2шт.

22

82000317

HINGE

2шт.

23

81868323

SEALING WASHER,8.1mm ID x 36mm OD x 5.3mm Thk

4шт.

24

82013304

SCREW,Pan HD, M8 x 22mm

2шт.

25

82019395

SEAL

4шт.

26

83995356

RUBBER SEAL,13mm ID x 35mm OD x 3mm L

1шт.

27

83995286

SEALING WASHER,M12.5 x 35 x 3 Thk

1шт.
