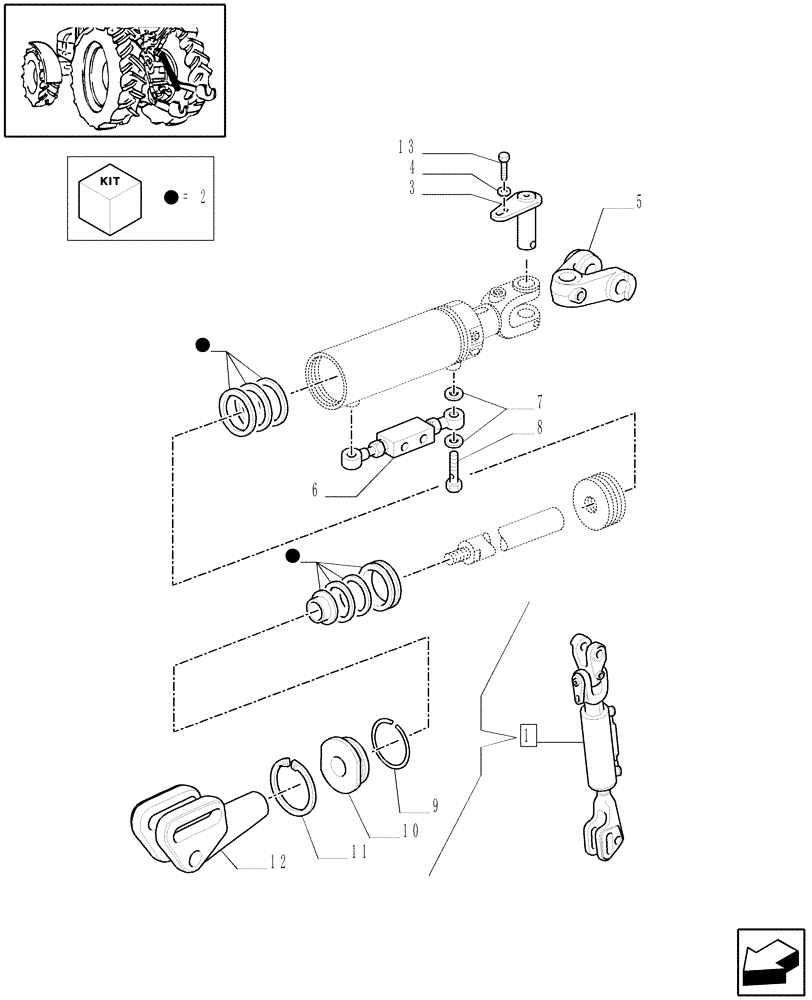

Запчасти Case IH MXM155 (1.89.6/09A[01A]) - (VAR.900) HYDR. ADJUST. OF RIGHT TIE-ROD AND 3 POINT LINK FOR CLOSED CCLS CENTRE - TIE-ROD - D5165 (09) - IMPLEMENT LIFT

1

47130645

TIE-ROD

Assy

1шт.

2

5192128

SEAL KIT

Gaskets

1шт.

3

47130642

PIN,25mm OD x 92mm L

1шт.

4

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

5

47130638

YOKE

1шт.

6

9970481

HYDRAULIC VALVE

1шт.

7

9970483

SEALING WASHER

4шт.

8

9970482

BANJO BOLT

2шт.

9

5192132

CIRCLIP

1шт.

10

9970485

GLAND

1шт.

11

5192129

LOCKING RING

1шт.

12

9970458

YOKE

1шт.

13

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.
