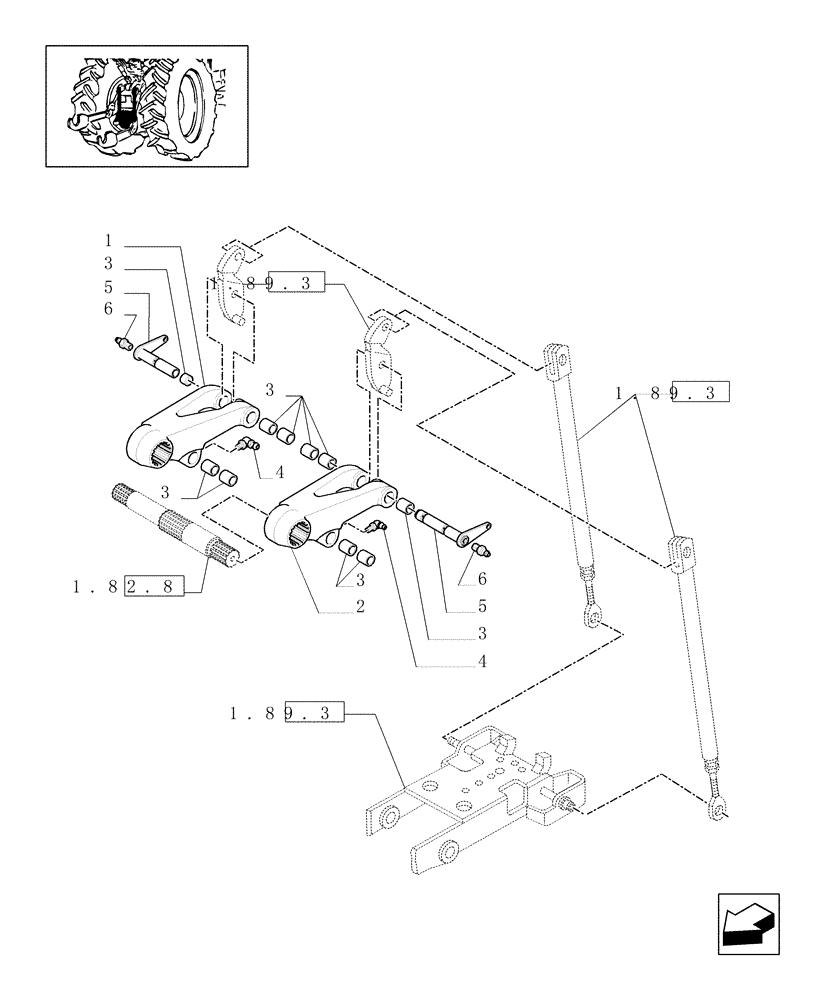

Запчасти Case IH MXM155 (1.89.3/01) - (VAR.898) AUTOMATICH HITCH (WITH 2 ADDITIONAL JACKS) (09) - IMPLEMENT LIFT

1

47125301

ARM

RH

1шт.

2

82029708

ARM

LH

1шт.

3

5153140

BUSHING,25.25mm ID x 30mm OD x 20mm L

10шт.

4

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

2шт.

5

47130500

PIN

5 mm Thk Arm, Serial Range: -ACM266224

2шт.

5

87319107

PIN,25mm OD x 133.5mm L

8 mm Thk Arm, Start Serial: ACM266225

2шт.

6

87414

LUBE NIPPLE,1/4" - 28

, Serial Range: -ACM266224

2шт.

6

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

, Start Serial: ACM266225

2шт.
