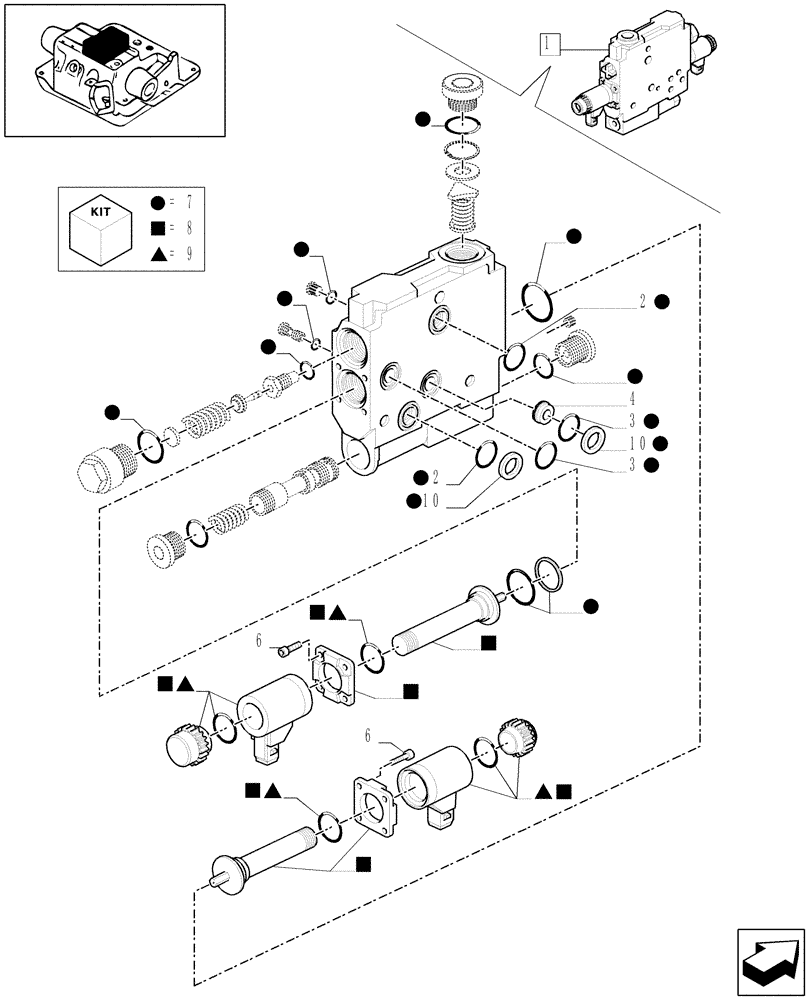

Запчасти Case IH MXM155 (1.82.7/ D) - REMOTE CONTROL VALVE BREAKDOWN (EDC VALVE) - D5504 (07) - HYDRAULIC SYSTEM

1

87553794

CONTROL VALVE

Assy (EDC Valve)

1шт.

1

87553794R

REMAN-HYD VALVE

Reman Assy (EDC Valve)

1шт.

1

87553794C

CORE-VALVE HYD

Core Return Number

1шт.

2

81862872

O-RING,2.4mm Thk x 19.6mm ID

19.6 x 2.4

1шт.

3

5190751

O-RING,2.5mm Thk x 18mm ID

18 x 2.5

2шт.

4

47127006

VALVE

Shuttle

1шт.

5

5190769

O-RING,2.5mm Thk x 17mm ID

17 x 2.5

1шт.

6

5190770

SCREW

8шт.

7

5195162

KIT

1шт.

8

5190767

SOLENOID

Solenoid

1шт.

9

5190768

COIL ASSY.

Raise Solenoid

1шт.

10

5195150

BACK-UP RING

2шт.
