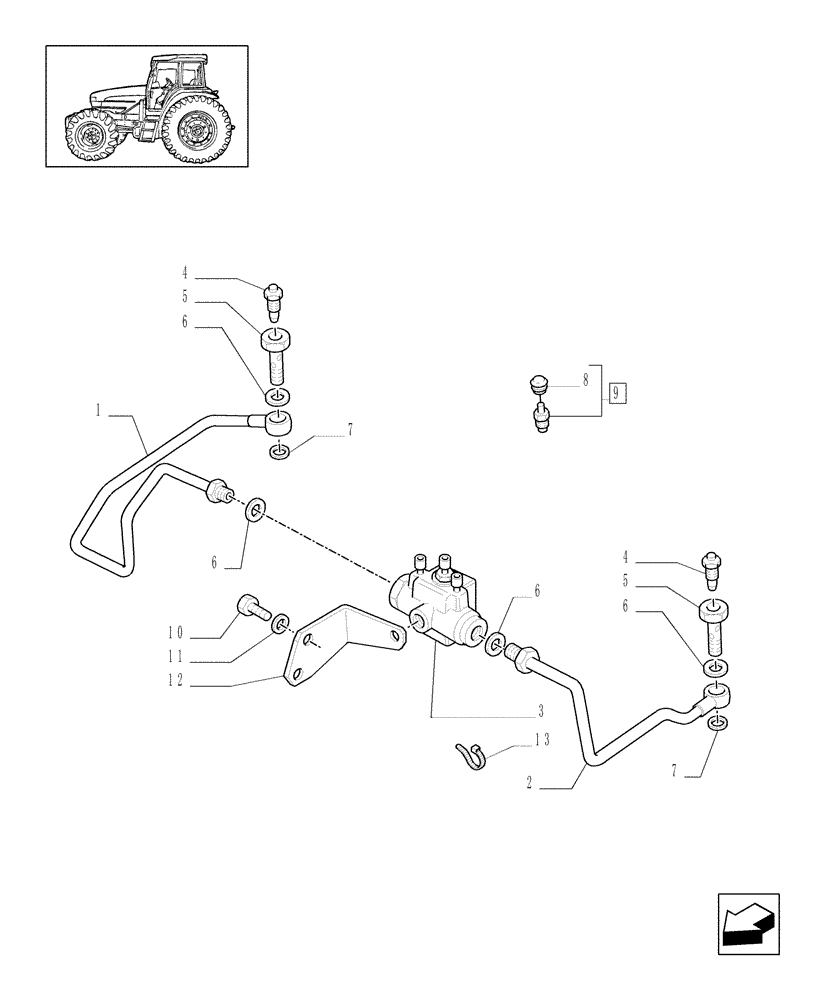

Запчасти Case IH MXM155 (1.82.713/07[01]) - (VAR.396) BRAKING SYSTEM VALVE (07) - HYDRAULIC SYSTEM

1

5191851

BRAKE LINE

RH

1шт.

2

5191852

BRAKE LINE

LH

1шт.

3

47126821

HYDRAULIC VALVE

1шт.

4

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

5

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

6

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

4шт.

7

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

8

81871475

CAP,4.7mm ID x 13mm OD x 10mm L

1шт.

9

81874592

BLEEDER,M12 x 1 x 15.50mm

1шт.

10

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

3шт.

11

10516674

LOCK WASHER,M8

3шт.

12

82018647

BRACKET

1шт.

13

14560087

CABLE TIE,103mm, Black

CABLE STRAP

1шт.
