Запчасти Case IH MXM155 (1.82.713/04[02]) - (VAR.418) TRAILER BRAKE VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) - ITALY (07) - HYDRAULIC SYSTEM

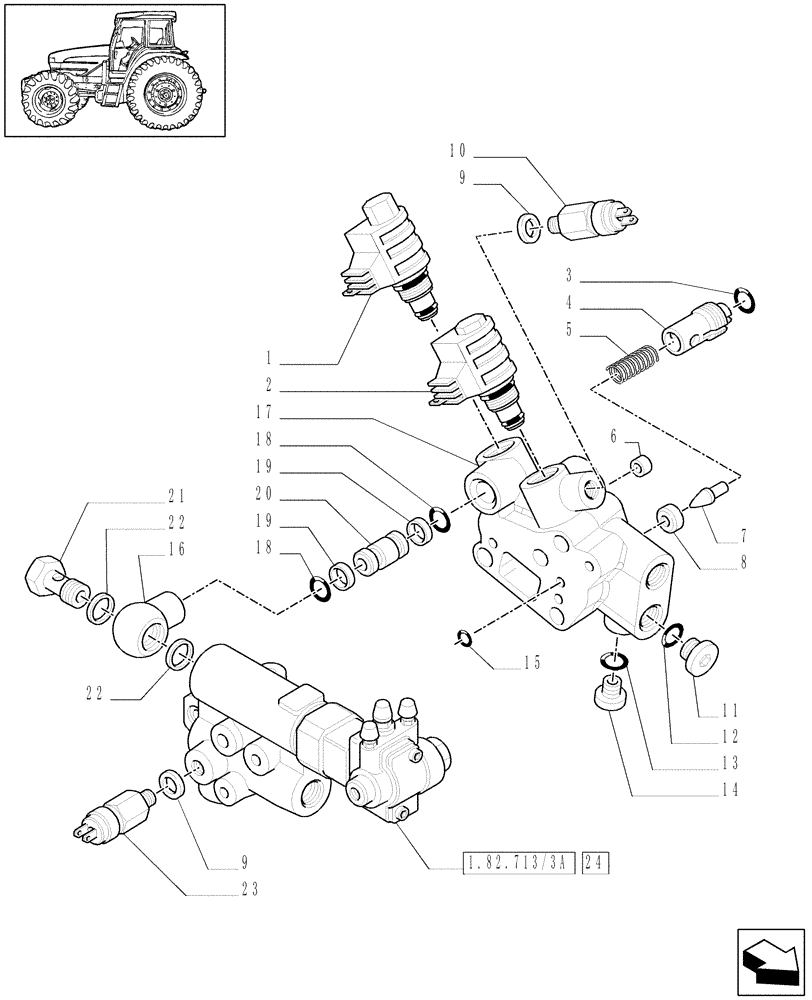

Схема запчастей Case IH MXM155 - (1.82.713/04[02]) - (VAR.418) TRAILER BRAKE VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) - ITALY (07) - HYDRAULIC SYSTEM
23
24
22
5
11
22
18
13
3
4
15
2
1
18
19
1.82.713/3a
7
20
12
9
9
6
21
14
10
17
8
19
16

Артикул

Название

Примечание

Количество

1

5157480

SOLENOID VALVE

N.O.

1шт.

2

5157481

SOLENOID VALVE

N.C.

1шт.

3

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

4

5186092

BODY

1шт.

5

5157487

SPRING,9.5mm OD x 44mm L

1шт.

6

5103239

BUSHING,8mm ID x 11mm OD x 7mm L

M8.25 x 11 x 7

1шт.

7

5187827

GUIDE PIN

1шт.

8

5184567

RING

1шт.

9

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

3шт.

10

5157750

PRESSURE SWITCH

Oil Pressure

1шт.

11

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

13

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

14

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

15

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

15

81862872

O-RING,2.4mm Thk x 19.6mm ID

19.6 x 2.4

1шт.

15

81862879

O-RING,2.4mm Thk x 7.6mm ID

7.6 x 2.4

1шт.

16

5184562

ELBOW

Banjo

1шт.

17

5188150

BODY

(1, 2, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14)

1шт.

18

14457081

O-RING,12.37mm ID x 2.62mm

2шт.

19

5185223

O-RING,13mm ID x 17.36mm OD x 1.35mm

13 x 17.36 x 1.35

2шт.

20

5184560

HYD CONNECTOR

1шт.

21

5184546

BANJO BOLT

M18 x 1.5

1шт.

22

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

23

5161047

PRESSURE SWITCH

Safety

1шт.

24

47126818

BRAKE VALVE

Safety

1шт.

Выбрано товаров: 26
