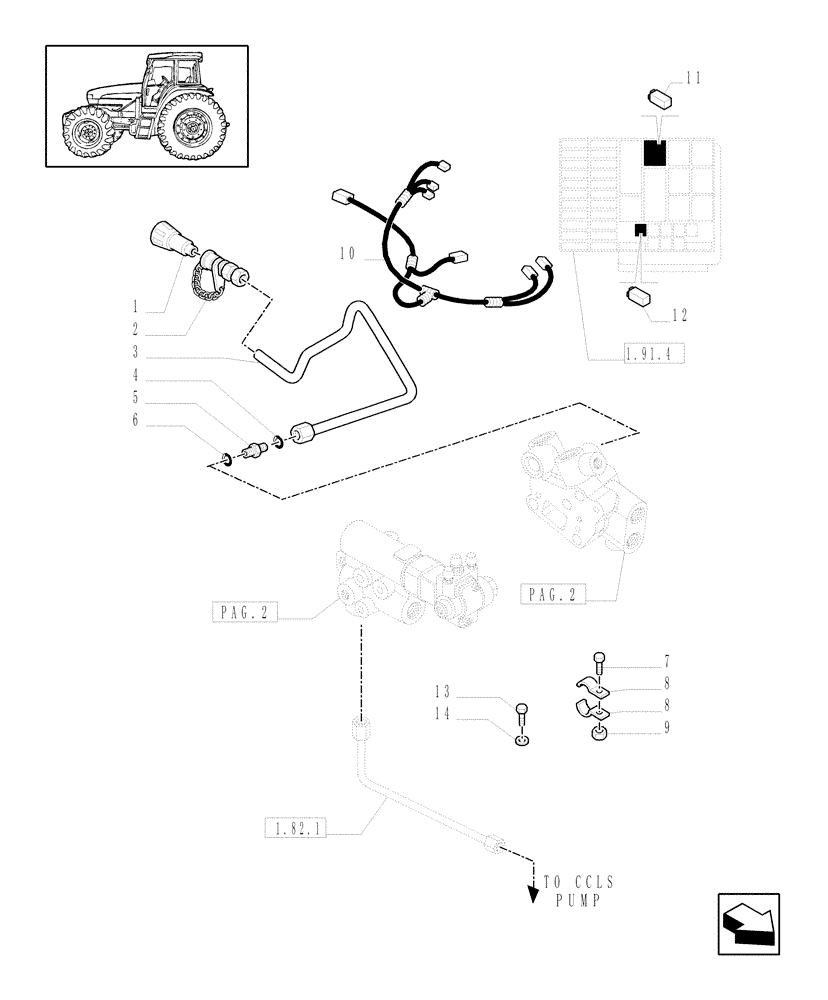

Запчасти Case IH MXM155 (1.82.713/04[01]) - (VAR.418) TRAILER BRAKE VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) - ITALY (07) - HYDRAULIC SYSTEM

1

62775076

QUICK MALE COUPLING

1шт.

2

44015354

QUICK MALE COUPLING

1шт.

3

5187456

TUBE

1шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

5

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

1шт.

6

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

7

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

8

5189991

CLAMP

4шт.

9

12574211

NUT,M6 x 1, Cl 8

2шт.

10

82006060

WIRE HARNESS

1шт.

11

83990084

RELAY

40A

1шт.

12

83990024

RELAY

Normally Closed

1шт.

13

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.
