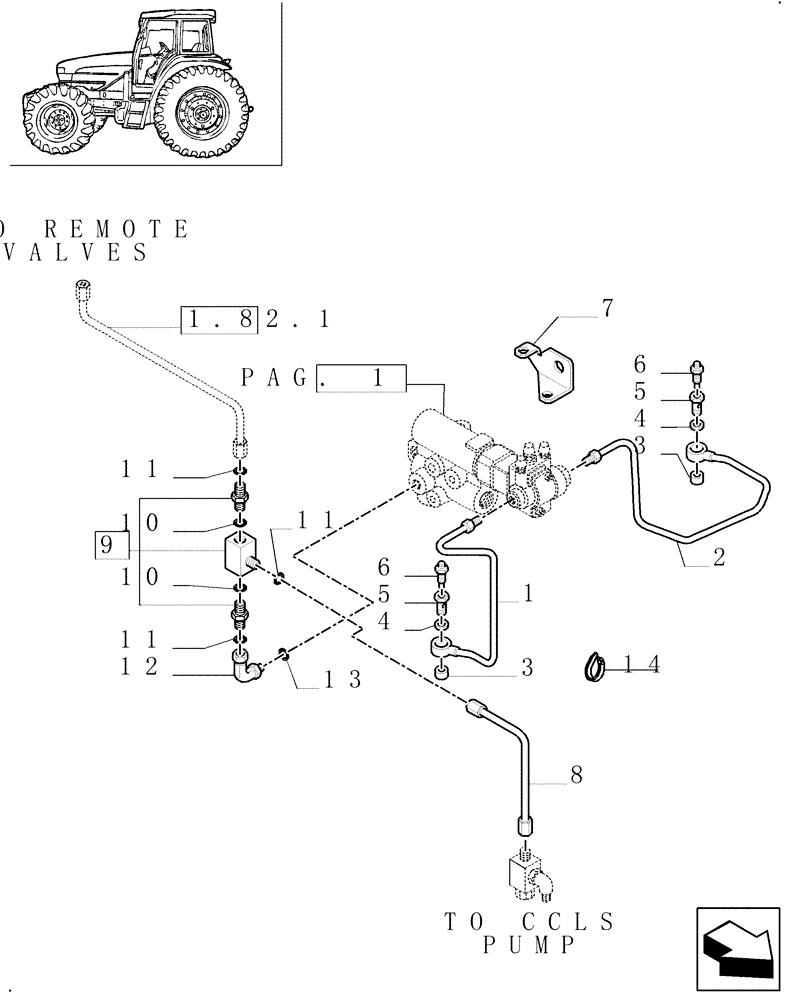

Запчасти Case IH MXM155 (1.82.713/03[02]) - (VAR.414) TRAILER BRAKE VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) - C5906 (07) - HYDRAULIC SYSTEM

1

5191851

BRAKE LINE

RH

1шт.

2

5191852

BRAKE LINE

LH

1шт.

3

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

12 x 17 x 5

2шт.

4

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

2шт.

5

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

6

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

7

5184505

SUPPORT

1шт.

8

5189764

BRAKE LINE

1шт.

9

81862791

VALVE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

10

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

12

47126309

ELBOW

Incl. 13

1шт.

13

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

14

14560087

CABLE TIE,103mm, Black

CABLE STRAP

2шт.
