Запчасти Case IH MXM155 (1.82.713/03[01]) - (VAR.414) TRAILER BRAKE VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) (07) - HYDRAULIC SYSTEM

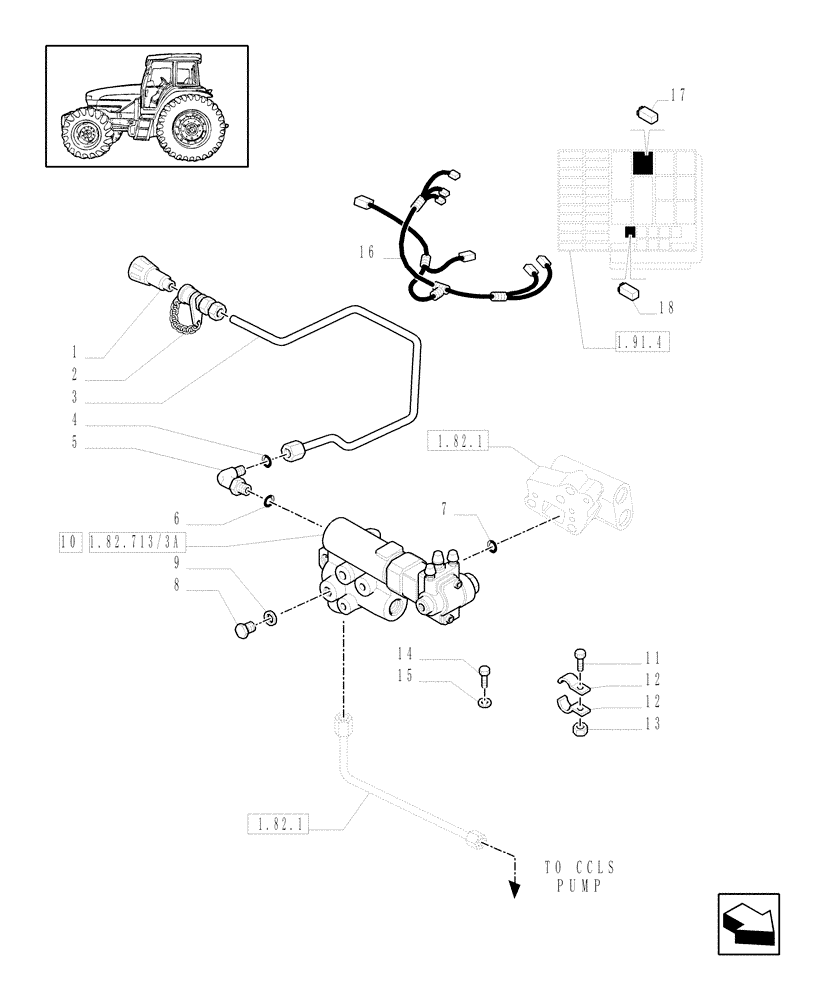

Схема запчастей Case IH MXM155 - (1.82.713/03[01]) - (VAR.414) TRAILER BRAKE VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) (07) - HYDRAULIC SYSTEM
pump
12
17
2
4
1.91.4
1.82.1
1.82.1
3
9
15
1
18
1.82.713/3a
6
12
7
16
10
to ccls
13
5
11
14
8

Артикул

Название

Примечание

Количество

1

62775076

QUICK MALE COUPLING

1шт.

2

44015354

QUICK MALE COUPLING

1шт.

3

5197658

TUBE

1шт.

4

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

5

5185054

ELBOW,90 Degrees, M18 x 1.5 ORB 13/16-16 ORFS

Incl. 6

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

7

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

7

81862872

O-RING,2.4mm Thk x 19.6mm ID

19.6 x 2.4

1шт.

7

81862879

O-RING,2.4mm Thk x 7.6mm ID

7.6 x 2.4

1шт.

7

14457081

O-RING,12.37mm ID x 2.62mm

1шт.

8

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

9

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

10

47126818

BRAKE VALVE

1шт.

11

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

12

5189991

CLAMP

4шт.

13

12574211

NUT,M6 x 1, Cl 8

2шт.

14

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

15

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

16

82006060

WIRE HARNESS

1шт.

17

83990084

RELAY

1шт.

18

83990024

RELAY

1шт.

Выбрано товаров: 22
