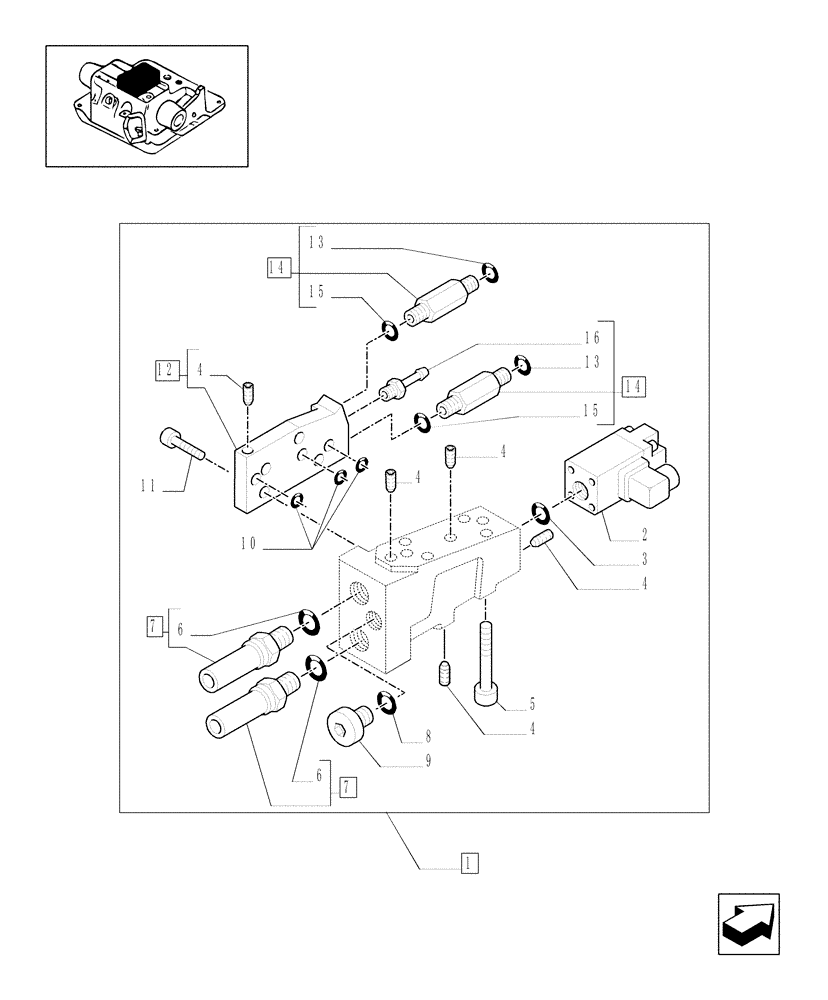

Запчасти Case IH MXM155 (1.82.7/13[04]) - (VAR.900) HYDR. ADJUSTMENT OF RIGHT TIE-ROD FOR CLOSED CCLS CENTRE-IMPLEMENT ADJUS. CTRL VALVE-C5279 (07) - HYDRAULIC SYSTEM

1

5189613

CONTROL VALVE

1шт.

2

5137085

SOLENOID

1шт.

3

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

4

13789621

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

5шт.

5

14304824

HEX SOC SCREW,M6 x 55mm, Cl 8.8

4шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

7

5190882

PUSH-PULL COUPLING

2шт.

8

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

9

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

10

14456881

O-RING,0.362" ID x 0.103" Width

3шт.

11

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

4шт.

12

5189619

PLATE

1шт.

13

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

14

5189602

HYD CONNECTOR

2шт.

15

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

16

5171030

HYD CONNECTOR

1шт.

83984290

KIT

Seal & Ring, for 5190882 Coupler

1шт.
