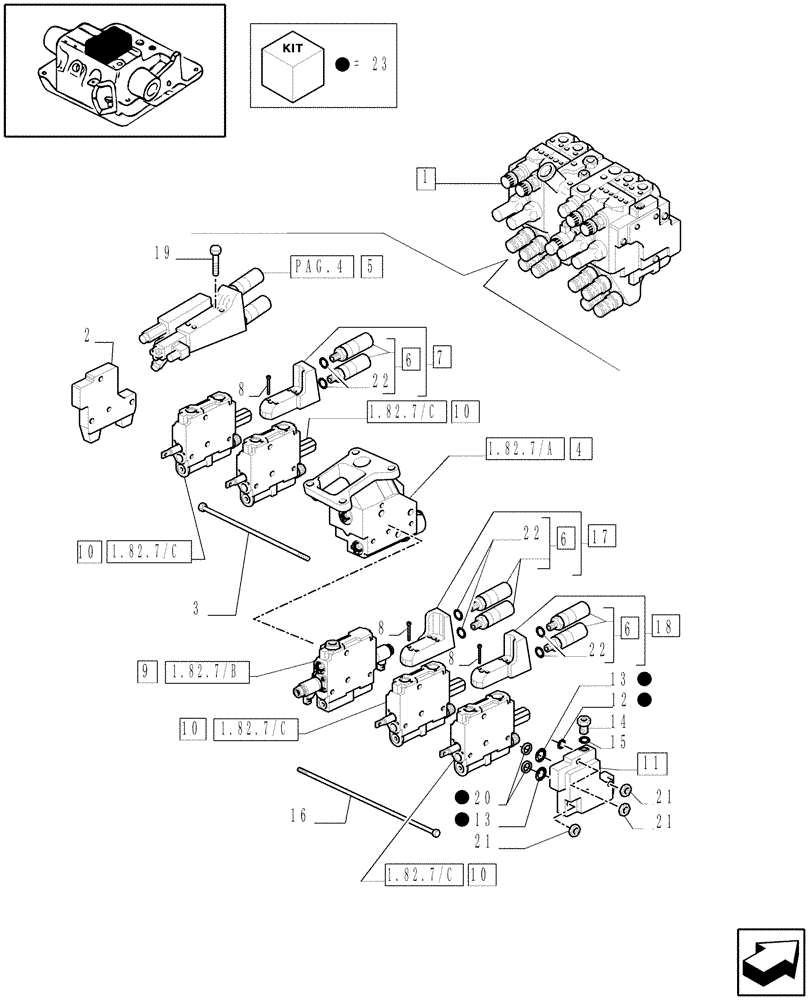

Запчасти Case IH MXM155 (1.82.7/13[02]) - (VAR.900) HYDR. ADJUSTMENT OF RIGHT TIE-ROD FOR CLOSED CCLS CENTRE - CTRL VALVE, RELEVANT PARTS (07) - HYDRAULIC SYSTEM

1

5194805

CONTROL VALVE

Assy

1шт.

2

5190710

PLATE

1шт.

3

5195170

BOLT

3шт.

4

5195158

BODY

Assy

1шт.

5

5189613

CONTROL VALVE

Assy, Serial Range: -293075

1шт.

5

87381999

CONTROL VALVE

Assy, Start Serial: 293076

1шт.

6

5190882

PUSH-PULL COUPLING

Incl. 22, Serial Range: -293075

6шт.

6

87381944

COUPLING, QUICK, FEM

, Start Serial: 293076

6шт.

7

5191808

COUPLING

Assy, Serial Range: -293075

1шт.

7

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, Assy, Start Serial: 293076

1шт.

8

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

12шт.

9

5195159

CONTROL VALVE

Assy

1шт.

10

5195165

HYD VALVE SECTION

Assy

4шт.

11

5195157

COVER

(12, 13, 20)

1шт.

12

81862872

O-RING,2.4mm Thk x 19.6mm ID

19.6 x 2.4

1шт.

13

5190751

O-RING,2.5mm Thk x 18mm ID

18 x 2.5

2шт.

14

5191704

CHECK VALVE

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

16

5195168

TIE-ROD,M8

3шт.

17

5191806

COUPLING

Assy, Serial Range: -293075

1шт.

17

87381982

HYDRAULIC MANIFOLD

is faster 4bm11, Assy, Start Serial: 293076

1шт.

18

5191803

COUPLING

Assy, Serial Range: -293075

1шт.

18

87381981

HYDRAULIC MANIFOLD

is faster 4bm10, Assy, Start Serial: 293076

1шт.

19

14304824

HEX SOC SCREW,M6 x 55mm, Cl 8.8

2шт.

20

5195150

BACK-UP RING

2шт.

21

5195169

NUT,M8

3шт.

83984290

KIT

Seal & Ring, for 5190882 Coupler

1шт.

22

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

23

47126963

SEAL

1шт.
