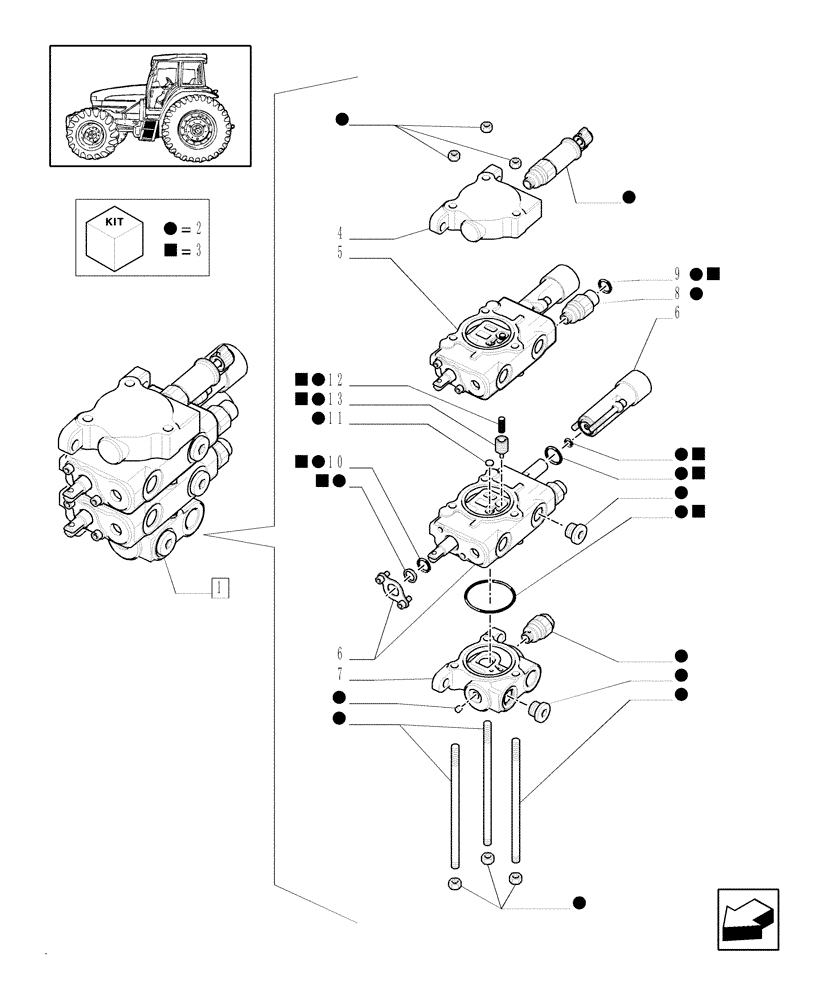

Запчасти Case IH MXM155 (1.82.7/07A) - (VAR.444,714,714/1) 2 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR FRONT LIFT - PARTS COMPONENTS (07) - HYDRAULIC SYSTEM

1

82019734

CONTROL VALVE

Assy

1шт.

2

82039634

REPAIR KIT

1шт.

3

82034759

SEAL KIT

1шт.

4

82039640

HYD VALVE SECTION

Outlet

1шт.

5

82039639

CONTROL VALVE

1шт.

6

82039638

CONTROL VALVE

Assy

1шт.

7

82039637

HYD VALVE SECTION

Inlet

1шт.

8

86582451

HYD CONNECTOR

2шт.

Threaded steel Cap on the end of 86582451 is 13/16"-16 threads. It is only available with a new valve

1шт.

9

14453181

O-RING,0.489" ID x 0.07" Width

2шт.

10

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

4шт.

11

75312804

DISC

1шт.

12

75289565

SPRING

1шт.

13

75289566

SPOOL

1шт.
