Запчасти Case IH MXM155 (1.82.7/04A[01]) - (VAR.440,440/2) 2 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER - PARTS COMPONENTS (07) - HYDRAULIC SYSTEM

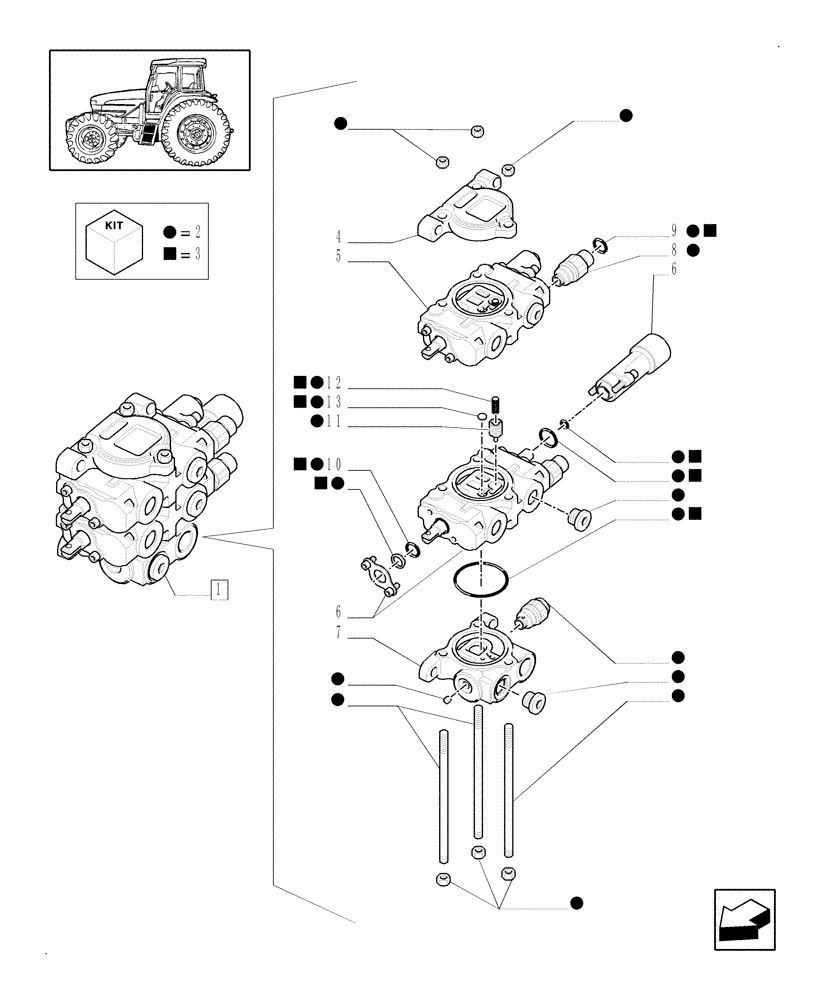

Схема запчастей Case IH MXM155 - (1.82.7/04A[01]) - (VAR.440,440/2) 2 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER - PARTS COMPONENTS (07) - HYDRAULIC SYSTEM
2
2
2
2
2
9
2
3
2
11
13
2
2
4
6
3
3
2
2
3
2
1
2
2
10
6
2
2
2
5
12
2
3
8
2
3
7
2
3
2
3
3
3

Артикул

Название

Примечание

Количество

1

82019733

VALVE SECTION

Assy

1шт.

2

82039635

SERVICE KIT

1шт.

3

82034757

SEAL KIT

1шт.

4

82030637

HYD VALVE SECTION

Outlet

1шт.

5

82030635

HYDRAULIC VALVE

1шт.

6

82030634

HYDRAULIC VALVE

Assy

1шт.

7

82030632

HYD VALVE SECTION

Inlet

1шт.

8

86582451

HYD CONNECTOR

2шт.

Threaded steel Cap on the end of 86582451 is 13/16"-16 threads. It is only available with a new valve

1шт.

9

14453181

O-RING,0.489" ID x 0.07" Width

2шт.

10

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

4шт.

11

75289566

SPOOL

2шт.

12

75289565

SPRING

2шт.

13

75312804

DISC

1шт.

Выбрано товаров: 14
