Запчасти Case IH MXM155 (1.82.7/04) - (VAR.440) VALVE CONTROL UNIT WITH JOYSTICK FOR LOADER (07) - HYDRAULIC SYSTEM

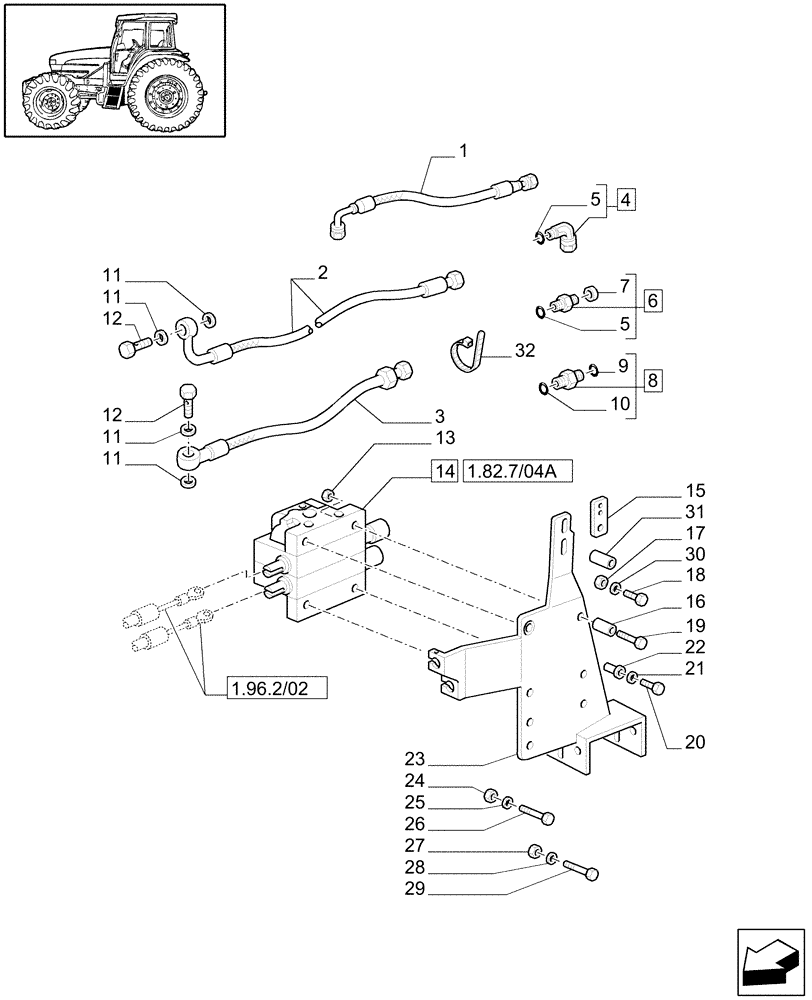

Схема запчастей Case IH MXM155 - (1.82.7/04) - (VAR.440) VALVE CONTROL UNIT WITH JOYSTICK FOR LOADER (07) - HYDRAULIC SYSTEM
1.96.2/02
5
29
27
8
14
20
12
11
6
21
30
18
10
19
28
16
4
31
5
11
23
3
15
32
2
11
7
17
24
13
11
26
9
22
25
1
12
1.82.7/04a

Артикул

Название

Примечание

Количество

1

82021012

FLEXIBLE HOSE

Hydr. Pump Load Sense, 1700 mm lg, Serial Range: -ACM259775

1шт.

1

87312861

HOSE,6.35mm ID x 1700mm L, SAE 100R2

Hydr. Pump Load Sense, 1700 mm lg, Start Serial: ACM259776

1шт.

2

82023455

FLEXIBLE HOSE,1680.00 mm, SAE J517-100R2

Valve Return, Serial Range: -ACM259775

1шт.

2

87312890

FLEXIBLE HOSE,22.23mm ID x 1680mm L, SAE 100R1

Valve Return, 1680 mm lg, Start Serial: ACM259776

1шт.

3

82033358

FLEXIBLE HOSE,15.88mm ID x 1205mm L, SAE 100R2

Valve Supply

1шт.

4

82020198

ELBOW

9/16"-18

1шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

6

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

9/16"-18 UN-2A/M10 x 1

1шт.

7

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

8

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

M22 x 1.5, 1"-14UN-2A

1шт.

9

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

90 Duro

1шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

11

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

4шт.

12

5112588

BANJO BOLT,M22 x 1.5 x 40mm

2шт.

13

11701721

NUT,M10, Cl 10

3шт.

14

82019733

VALVE SECTION

1шт.

15

82022576

BRACKET

1шт.

16

82020123

SPACER

11 x 25 x 30

1шт.

17

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

2шт.

18

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

18

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

19

11106424

SCREW,Hex, M10 x 30mm, Cl 8.8, Full Thd

1шт.

19

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

19

82022265

SCREW,Flat CSK, M10 x 1.25 x 30mm

M10 x 1.5 x 30

1шт.

20

15971424

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

1шт.

20

15971624

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

1шт.

21

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

22

82009429

ISOLATOR

1шт.

23

82022245

BRACKET

1шт.

24

80100038

NUT

Prevailing Torque, CL 8, M12 x 1.75

1шт.

25

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

26

11114231

BOLT,Hex, M12 x 100, 10.9

1шт.

27

14048221

NUT,M8 x 1.25, Cl 10

1шт.

28

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

29

16046131

SCREW,Hex, M8 x 100mm, Cl 10.9

1шт.

30

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

31

5120607

SPACER,10.5mm ID x 20mm OD x 12mm L

M10 x 20 x 12

1шт.

32

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

Выбрано товаров: 38
