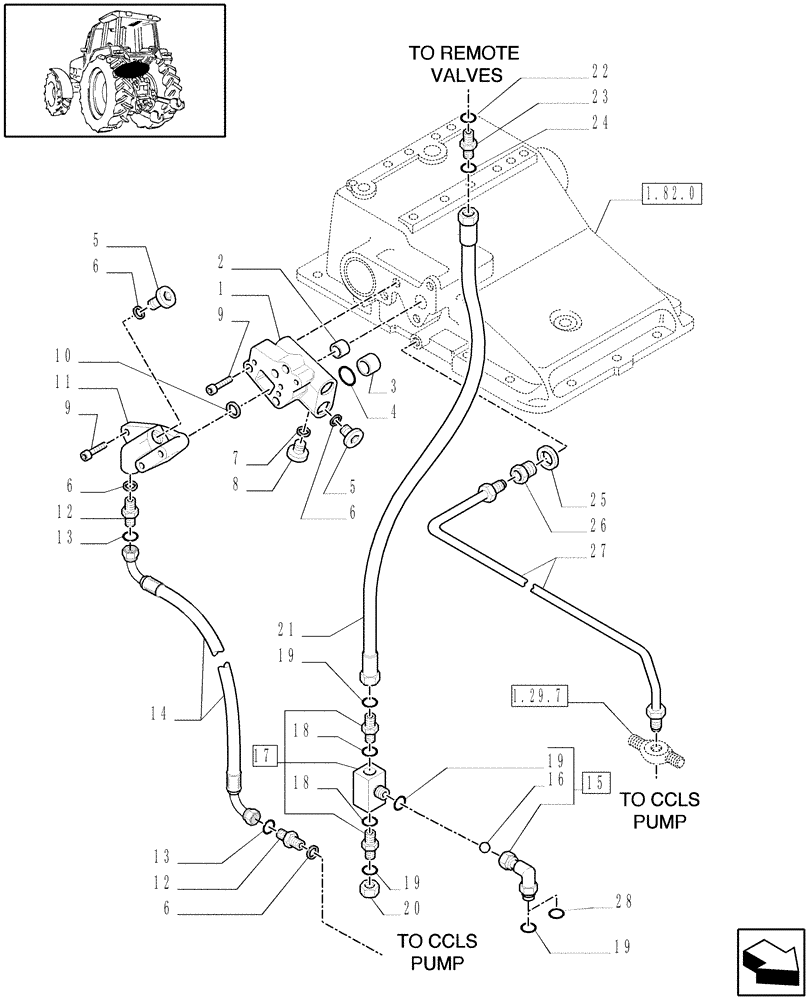

Запчасти Case IH MXM155 (1.82.1[01]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

1

5188096

MANIFOLD

1шт.

2

5103239

BUSHING,8mm ID x 11mm OD x 7mm L

M8.25 x 11 x 7

1шт.

3

5186083

BUSHING,11mm ID x 16mm OD x 14mm L

11 x 16 x 14

1шт.

4

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

5

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

2шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

7

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

8

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

9

14308920

HEX SOC SCREW,M8 x 60mm, Cl 8.8

3шт.

9

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

2шт.

9

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

10

81862872

O-RING,2.4mm Thk x 19.6mm ID

19.6 x 2.4

1шт.

10

81862879

O-RING,2.4mm Thk x 7.6mm ID

7.6 x 2.4

1шт.

11

5189019

COVER

1шт.

12

5185041

HYD CONNECTOR,1"3/16-12 ORFS x M22 x 1.5 ORB

2шт.

13

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

14

5199154

HYDRAULIC HOSE,16mm ID x 348mm L

1шт.

15

47126657

ELBOW

, Serial Range: -C5082

1шт.

15

47135294

90 ELBOW

Incl. 28, Start Serial: D5082

1шт.

16

47126655

FILTER STRAINER

, Serial Range: -C5082

1шт.

17

81862791

VALVE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

18

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

19

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

20

5189973

PLUG

9/16"-18

1шт.

21

87302782

FLEXIBLE HOSE,6.3mm ID x 1200mm L

1шт.

22

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

23

5185045

HYD CONNECTOR

9/16"-18, M12 x 1.5

1шт.

24

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

25

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

26

5157873

HYD CONNECTOR

1шт.

27

5184823

HYD TUBE

1шт.

28

14437585

O-RING,8.00mm ID x 1.50mm

, Start Serial: D5082

1шт.
