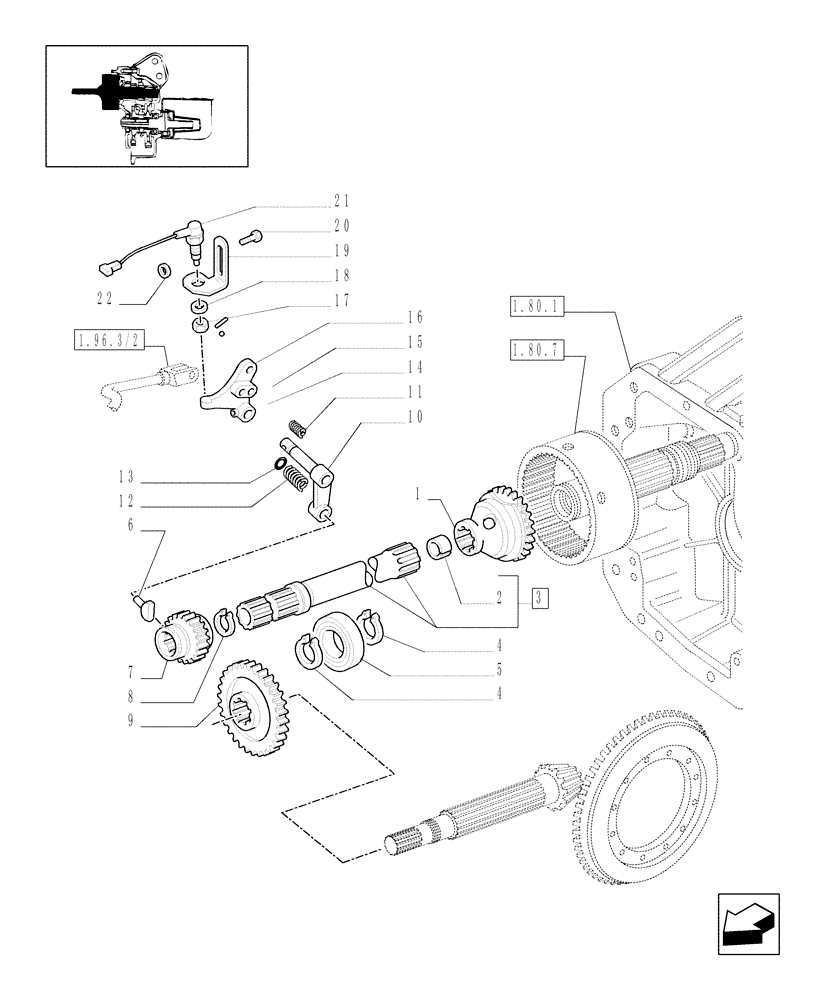

Запчасти Case IH MXM155 (1.80.7/04) - (VAR.817) SYNCHRO. POWER TAKE OFF FOR FULL POWER SHIFT (07) - HYDRAULIC SYSTEM

1

5165074

HUB

1шт.

2

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

3

5166835

SHAFT

Assy

1шт.

4

11062476

SNAP RING,M90, Int

2шт.

5

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

50 x 90 x 20 mm

1шт.

6

4984096

CONTROL LEVER,10mm OD x 40mm L

1шт.

7

5153151

GEAR,18T, 24T

1шт.

8

11069376

SNAP RING,M50, Ext

1шт.

9

5164890

DRIVING GEAR,Z47

1шт.

10

5153153

LEVER

1шт.

11

4994342

SPRING,8mm OD x 30mm OAL

1шт.

12

5139088

SPRING,22mm OD x 42mm L

1шт.

13

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

14

20063390

BALL,8.73mm OD

1шт.

15

13942670

ROLL PIN,M6 x 32, Coiled

1шт.

16

5155339

LEVER

1шт.

17

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

1шт.

18

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

19

5155349

BRACKET

1шт.

20

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

21

82014329

SWITCH

Ground Drive PTO Interlock

1шт.

22

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

2шт.
