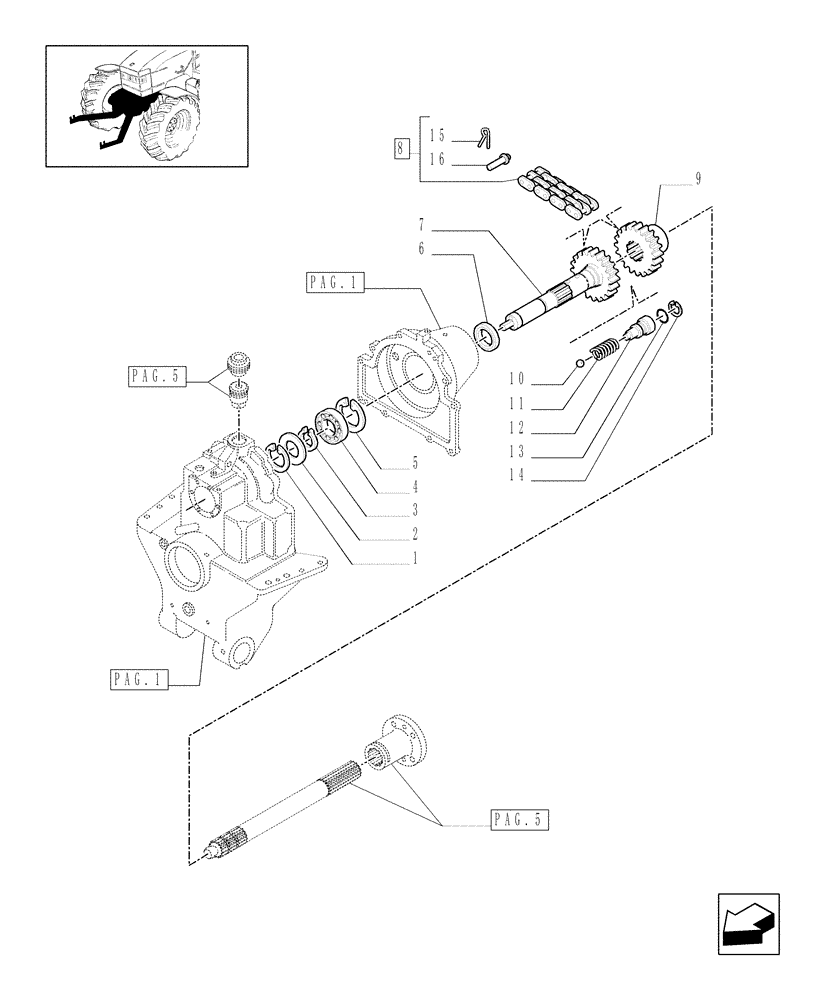

Запчасти Case IH MXM155 (1.80.5[04]) - (VAR.780-781) LIFT AND FRONT PTO (WITH 6 -21 SPLINES) CCLS - DRIVE SHAFT AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

1

11061876

SNAP RING,M78, Int

1шт.

2

5171034

PLATE

1шт.

3

11068876

SNAP RING,M40, Ext

1шт.

4

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

40 x 68 x 15

1шт.

5

11061376

SNAP RING,M68, Int

1шт.

6

87342469

SEAL,44.2mm ID x 68mm OD x 12mm Thk

45 x 68 x 12

1шт.

7

5171045

DRIVE SHAFT

1шт.

8

5165823

CHAIN,18 Links x 19.05mm = 342.9mm

1шт.

9

5171535

DRIVING GEAR

1шт.

10

20063510

BALL

9/16"

1шт.

11

5171032

SPRING

1шт.

12

5171033

PLUG

1шт.

13

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

14

11057876

SNAP RING,M20, Int

1шт.

15

5179524

COTTER PIN

1шт.

16

5179522

PIN

1шт.
