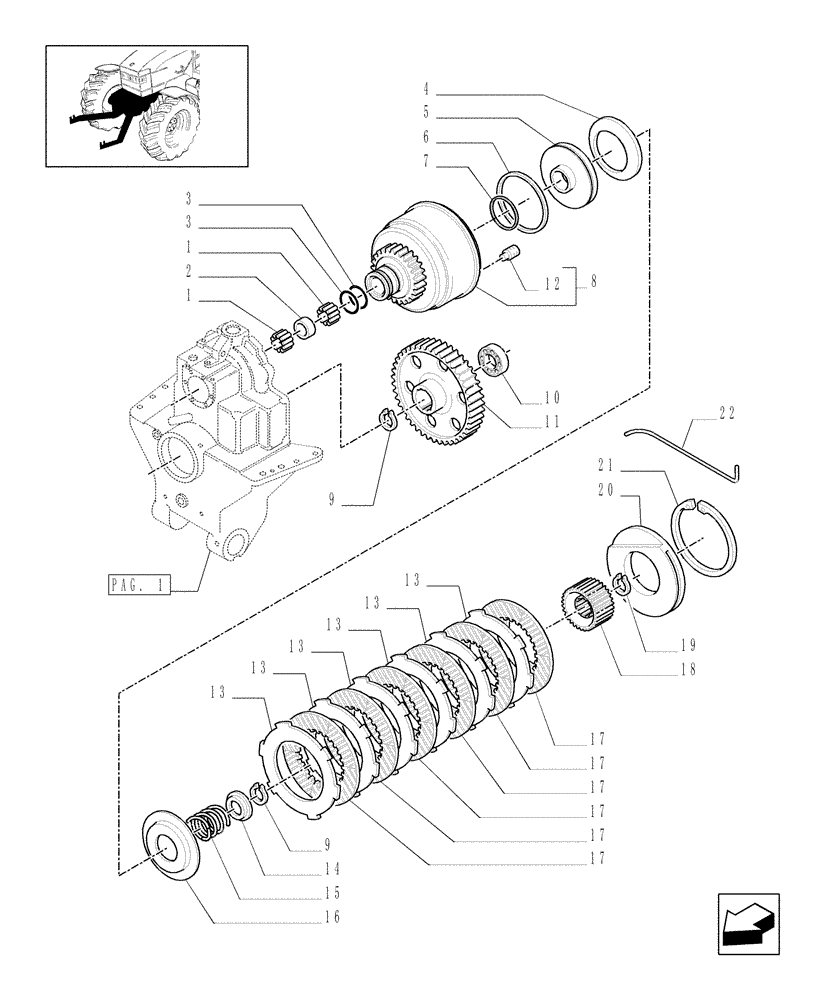

Запчасти Case IH MXM155 (1.80.5[03]) - (VAR.780-781) LIFT AND FRONT PTO (6 -21 SPLINES) CCLS - CLUTCH COVER PLATE AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

1

5119556

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 20mm W

35 x 42 x 20

2шт.

2

5171031

SPACER

1шт.

3

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

2шт.

4

5171035

BELLEVILLE WASHER

1шт.

5

5179025

PISTON

1шт.

6

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

135 x 128.5 x 3.2

1шт.

7

5137564

SEAL,48.55mm ID x 56mm OD x 3.2mm Thk

1шт.

8

5185545

HOUSING

1шт.

9

11069276

SNAP RING,M48, Ext

4шт.

10

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

11

5173737

DRIVEN GEAR

1шт.

12

5171508

RESTRICTOR

1шт.

13

5163840

DRIVE PLATE

6шт.

14

5171573

PLATE

Spring Reaction

1шт.

15

5140906

SPRING

1шт.

16

5171048

PLATE

1шт.

17

5158919

CLUTCH DRIVING PLATE

6шт.

18

5171046

HUB

1шт.

19

11068876

SNAP RING,M40, Ext

1шт.

20

5181016

DISC

1шт.

21

5179073

CIRCLIP

1шт.

22

5179138

RETAINING WIRE

1шт.
