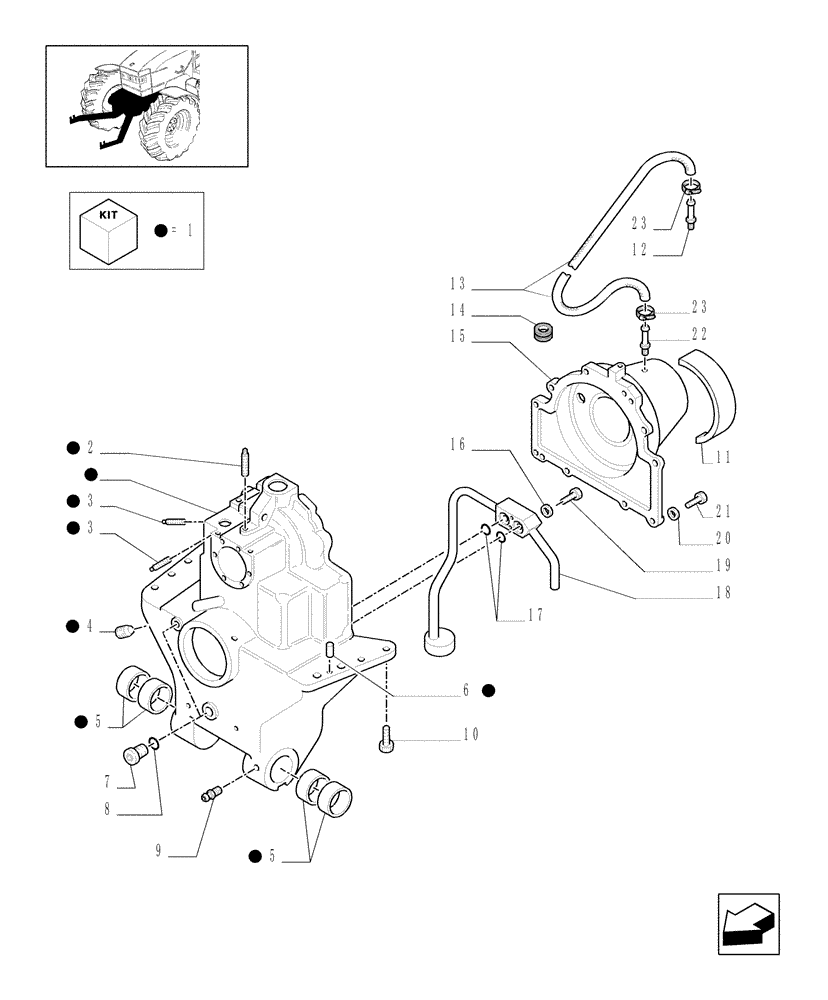

Запчасти Case IH MXM155 (1.80.5[01]) - (VAR.780-781) LIFT AND FRONT PTO (6 -21 SPLINES) CCLS - POWER TAKE OFF BOX (07) - HYDRAULIC SYSTEM

1

82024068

HOUSING

1шт.

2

10269150

PLUG,M6 x 1 x 60mm L

M6 x 1

1шт.

3

10269350

PLUG

M10 x 1.25

7шт.

4

10269404

PLUG,M12 x 1.5

M12 x 1.5

2шт.

5

5165094

BUSHING

4шт.

6

10837710

DOWEL,M10 x 25

2шт.

7

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

2шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

9

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

2шт.

10

82020153

BOLT,Flng, M20 x 2.5 x 58mm, Cl 12.9

8шт.

11

5180127

SEAL

1шт.

12

5171030

HYD CONNECTOR

1шт.

13

5180263

HOSE

, Serial Range: -ACM258608

1шт.

13

87364774

FLEXIBLE HOSE

3200 mm, Start Serial: ACM258609

1шт.

14

10403780

GROMMET,16mm ID x 22mm Groove D x 29mm OD

1шт.

15

5171038

COVER

1шт.

16

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

17

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

18

5167892

HYD TUBE

1шт.

19

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

20

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

10шт.

21

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

10шт.

22

82016971

HYD CONNECTOR

1шт.

23

82039341

CLAMP,12mm - 22mm

2шт.
