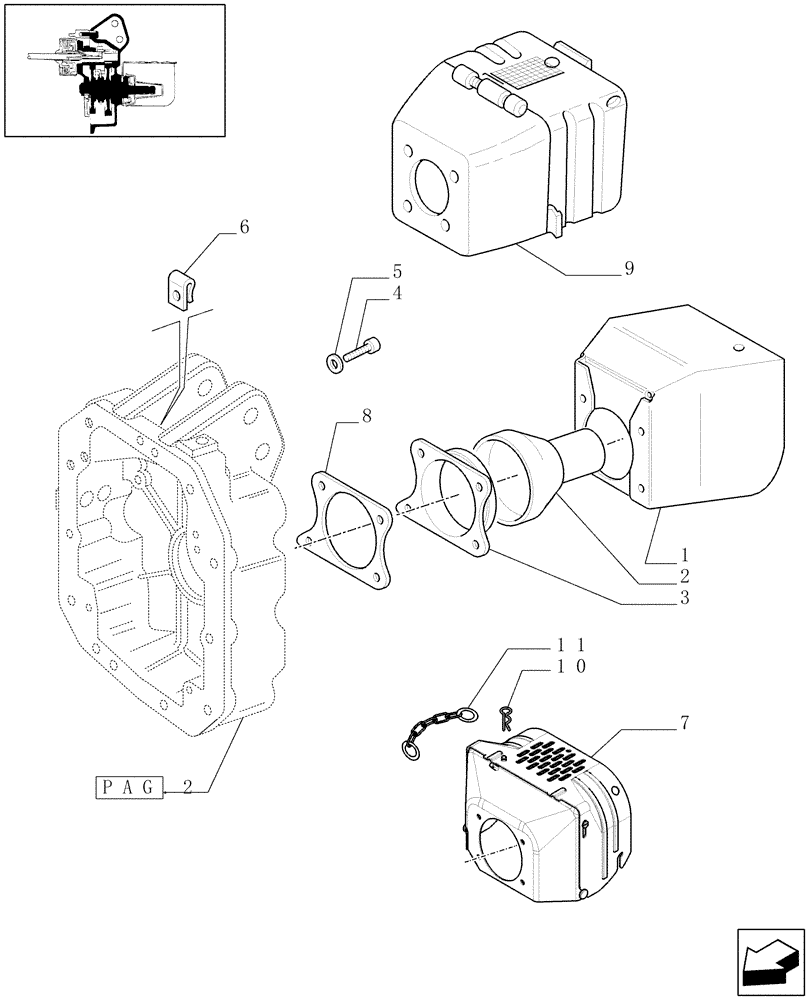

Запчасти Case IH MXM155 (1.80.1[05]) - POWER TAKE-OFF 540/750/1000 RPM (07) - HYDRAULIC SYSTEM

1

5171516

SHIELD

1шт.

2

5171520

SHIELD,132mm L

1шт.

3

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

4

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

4шт.

5

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

4шт.

6

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

1шт.

7

82024034

GUARD

(Equip. 816), Incl.10,11

1шт.

8

47131825

GUARD

, Start Serial: 226421

1шт.

9

47125899

COVER,109mm L

(Equip. 947)

1шт.

10

82026318

COTTER PIN,1/8 x 2 5/16

1шт.

11

82024033

CHAIN

1шт.
