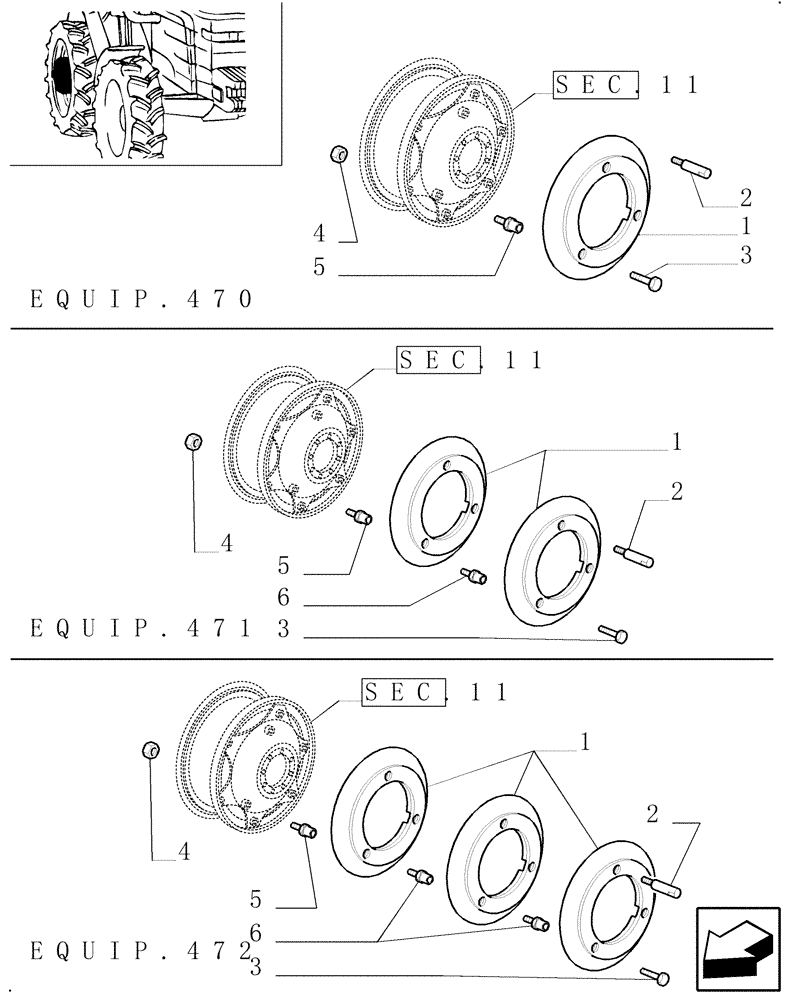

Запчасти Case IH MXM155 (1.49.6) - (VAR.470-471-472) REAR BALLAST FOR SHEET STEEL DISCS (05) - REAR AXLE

1

47127369

WHEEL WEIGHT,65kg

1шт.

Qty 2 for Equip. 470, Qty 4 for Equip. 471, Qty 6 for Equip. 472

1шт.

2

44013185

STUD

M16 x 1.5 x 115

2шт.

3

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

4

12164124

NUT,M16 x 1.5, Cl 8

6шт.

5

44018046

SCREW,M16 x 1.5 x 60mm

M16 x 1.5 x 60

6шт.

6

44018047

SCREW,M16 x 1.5 x 78mm

M16 x 1.5 x 78

1шт.

Qty 6 for Equip. 471, Qty 12 for Equip. 472

1шт.
