Запчасти Case IH MXM155 (1.48.1/06) - (VAR.431/4) 112" LONG AXLE FOR STEEL DISK (05) - REAR AXLE

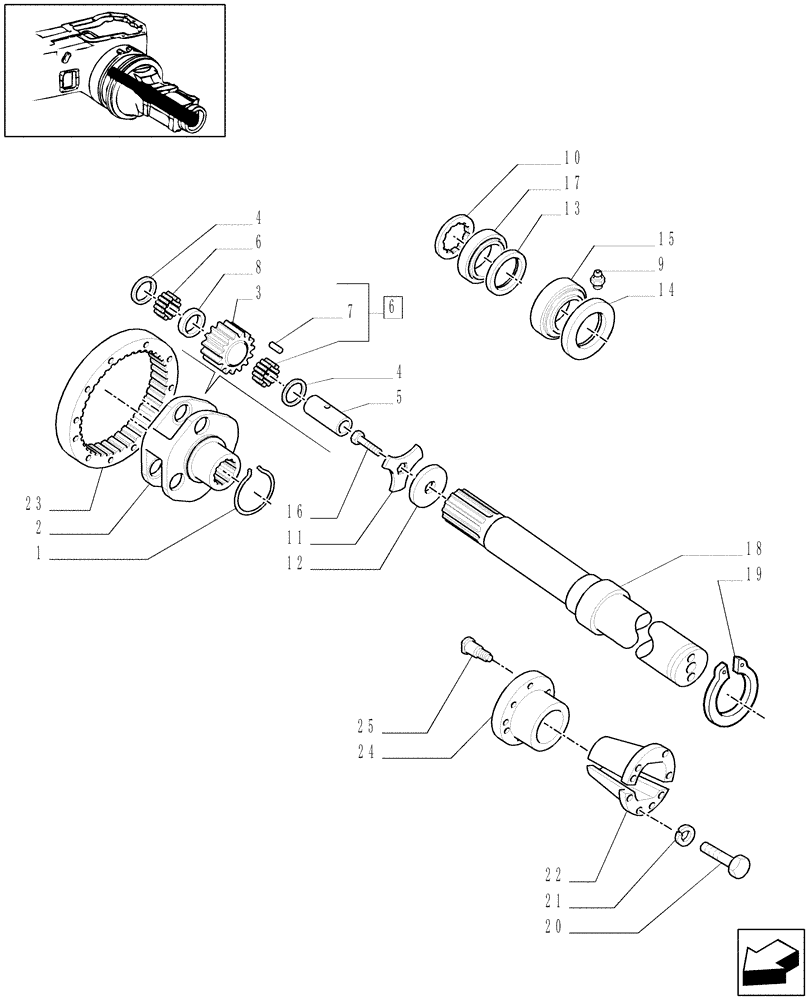

Схема запчастей Case IH MXM155 - (1.48.1/06) - (VAR.431/4) 112" LONG AXLE FOR STEEL DISK (05) - REAR AXLE
24
23
3
18
5
10
4
11
14
9
20
13
6
19
1
12
22
17
2
7
21
6
8
15
4
25
16

Артикул

Название

Примечание

Количество

1

4998880

SNAP RING,4mm Thk, Ext

2шт.

2

5162271

SUPPORT

2шт.

3

5162282

DRIVEN GEAR,25T

6шт.

4

5145983

THRUST WASHER,53.6mm ID x 84mm OD x 1mm Thk

12шт.

5

5162172

PIN,53.5mm OD x 129mm L

6шт.

6

5102466

NEEDLE BEARING,53.5mm ID x 67.5mm OD x 32mm W

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

54шт.

8

5102468

SPACER,56mm ID x 67.4mm OD x 5mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121648

THRUST WASHER,73mm ID x 106mm OD x 5mm Thk

2шт.

11

5146156

LOCKING PLATE

2шт.

12

5162141

DISC,18.5mm ID x 87.5mm OD x 8mm Thk

2шт.

13

5162403

SEAL,82mm ID x 105mm OD x 12mm Thk

2шт.

14

5199548

OIL SEAL,95.00mm ID x 130.00mm OD x 16.00mm

2шт.

15

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

85 x 130 x 29

2шт.

16

15984331

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

2шт.

17

24903490

BEARING ASSY,80mm ID x 125mm OD x 29mm W

80 x 125 x 29

2шт.

18

5198601

SHAFT,27T, 1083mm L

112"

2шт.

19

11071376

SNAP RING,M90, Ext

2шт.

20

11125321

BOLT,Hex, M20 x 80, 8.8

12шт.

21

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

20 x 36 x 4.5

12шт.

22

5198605

BUSHING

2шт.

23

5162266

RING GEAR,63T, 63mm L

2шт.

24

47126144

HUB

Incl. 25

2шт.

25

87651027

STUD,M18 x 1.5 x 85mm, Cl 10.9

8шт.

26

87651026

NUT,M18, 1.5mm Pitch, Captive Wshr

(Not Shown)

8шт.

Выбрано товаров: 26
