Запчасти Case IH MXM155 (1.40.7/13[02]) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - BRAKES (04) - FRONT AXLE & STEERING

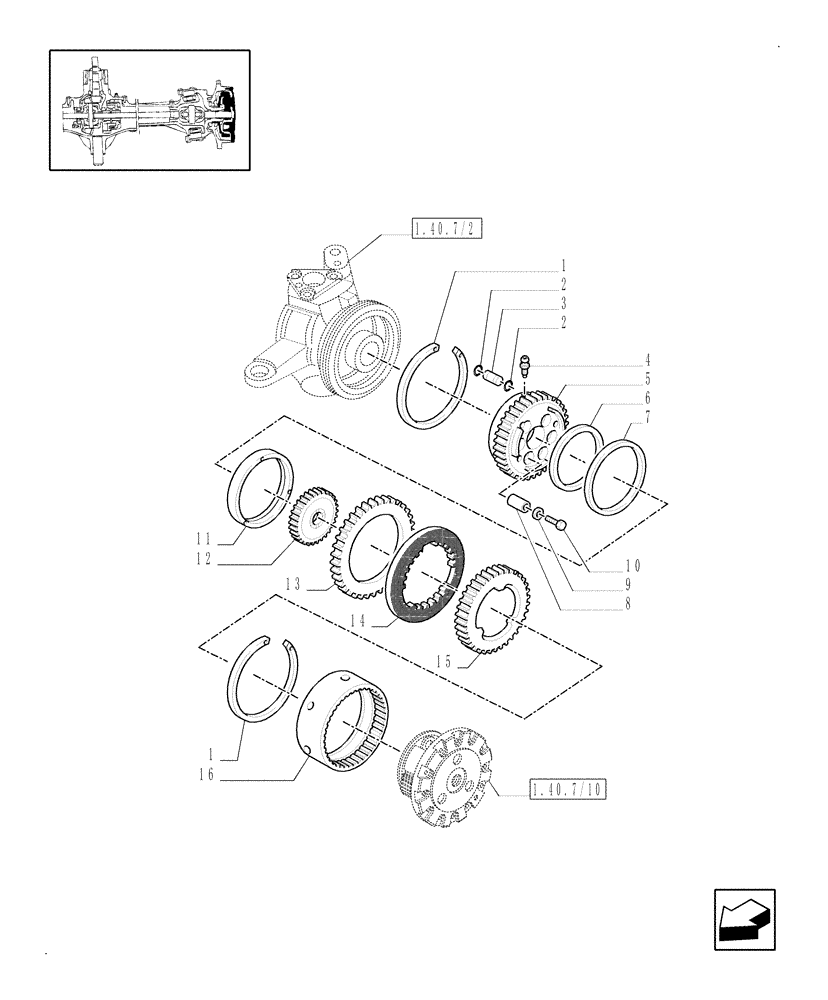

Схема запчастей Case IH MXM155 - (1.40.7/13[02]) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - BRAKES (04) - FRONT AXLE & STEERING
3
15
10
4
12
1
2
14
5
2
6
13
1.40.7/2
1.40.7/10
9
7
8
1
11
16

Артикул

Название

Примечание

Количество

1

5178857

CIRCLIP

4шт.

2

14456981

O-RING,0.424" ID x 0.103" Width

4шт.

3

5173504

PAWL,16mm OD x 25mm L

2шт.

4

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

5

5181994

HOUSING

2шт.

6

5181566

SEAL,198.6mm ID x 205.4mm OD x 3.4mm Thk

198.6 x 205.4 x 3.4

2шт.

7

5178850

PISTON RING,Square, 3.4mm Thk x 229.6mm ID, 80 Duro

229.6 x 236.4 x 3.4

2шт.

8

5179560

BUSHING,16.5mm ID x 27mm OD x 27.8mm L

12шт.

9

11200271

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 4.4mm Thk

M16 x 34 x 4.4

12шт.

10

16334430

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

12шт.

11

5181567

RING

2шт.

12

5182010

HUB,14T Internal / 60T External

2шт.

13

5178813

BRAKE DISC,191mm ID x 266.5mm OD x 4.95mm Thk

2шт.

14

5178903

BRAKE DISC,175mm ID x 247mm OD x 4.5mm Thk

2шт.

15

5181929

BRAKE DISC,182mm ID x 266.5mm OD x 18mm Thk

2шт.

16

5181933

RING GEAR

2шт.

Выбрано товаров: 16
