Запчасти Case IH MXM155 (1.40.7/02[02A]) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - STEERING PIVOT PINS - D5196 (04) - FRONT AXLE & STEERING

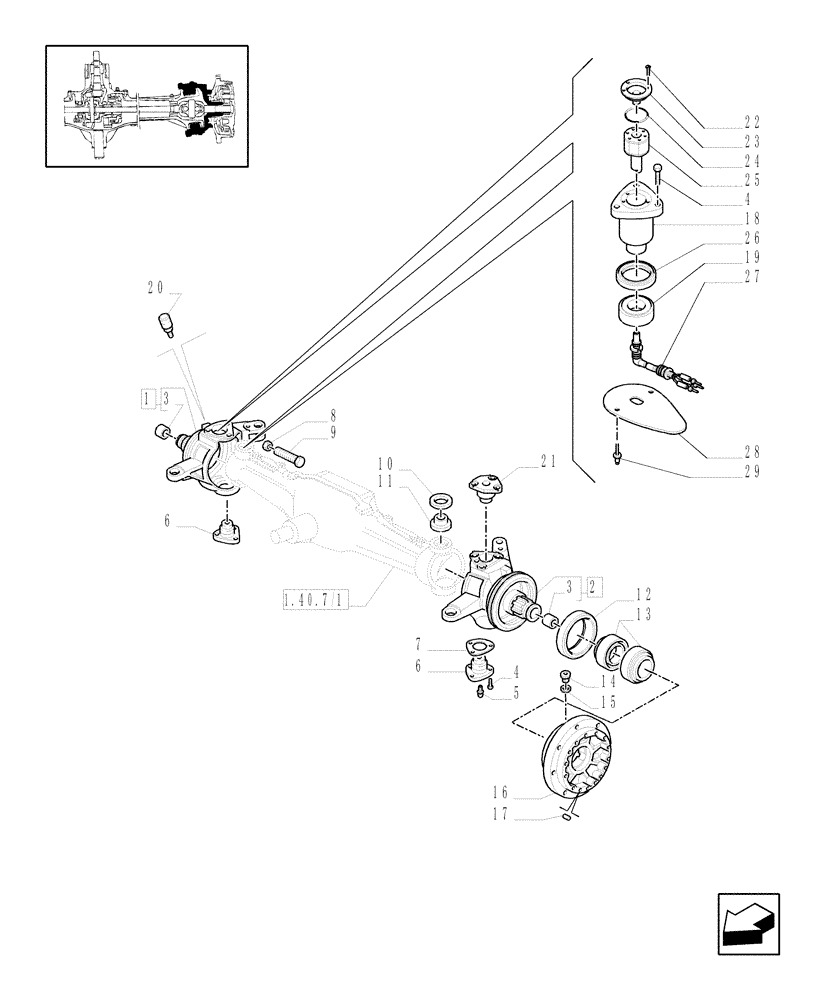

Схема запчастей Case IH MXM155 - (1.40.7/02[02A]) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - STEERING PIVOT PINS - D5196 (04) - FRONT AXLE & STEERING
9
8
10
12
13
4
14
6
1.
21
29
11
26
0.
27
24
4
4
1
1
22
23
/
3
20
3
16
18
25
17
19
7
28
6
7
5
15
2

Артикул

Название

Примечание

Количество

1

5182002

STUB AXLE/STEERING S

RH, MXM155

1шт.

1

5198876

STUB AXLE/STEERING S

RH, MXM175, MXM190

1шт.

2

5182000

STUB AXLE/STEERING S

LH, MXM155

1шт.

2

5198874

STEERING KNUCKLE

LH, MXM175, MXM190

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

2шт.

4

14254431

BOLT,Hex, M14 x 1.5 x 30mm, Cl 10.9

6шт.

4

14254534

BOLT,Hex, M14 x 1.5 x 35mm, Cl 10.9

6шт.

5

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

5

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

1шт.

6

5137138

BALL STUD

BALL PIN

2шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

7

5137115

SHIM,0.15mm Thk

1шт.

8

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

9

5179447

SCREW

M18 x 120

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

4шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

5178141

SEAL

190 x 220 x 14.5-18

2шт.

13

87303827

TAPERED BEARING,120mm ID x 170mm OD x 27mm W

4шт.

14

10278301

PLUG,M28 x 1.5 x 11, Brass

2шт.

15

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

2шт.

16

5182020

HUB

, Serial Range: -C5201

2шт.

16

87341366

HUB

, Start Serial: D5201

2шт.

17

4985063

DOWEL,12mm OD x 20mm L

2шт.

18

87309308

BALL STUD

BALL PIN

1шт.

19

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

1шт.

20

13413290

BREATHER

2шт.

21

5183085

PIN

1шт.

22

10384911

SCREW,Slotted Countersunk, M5 x 12mm

M5 x 12

3шт.

23

87309292

PIN

1шт.

24

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

25

87303761

SENSOR

Steering

1шт.

26

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

1шт.

27

87303770

ELEC CONNECTOR

1шт.

28

87315098

SHIELD

1шт.

29

14643091

RIVET

2шт.

Выбрано товаров: 35
