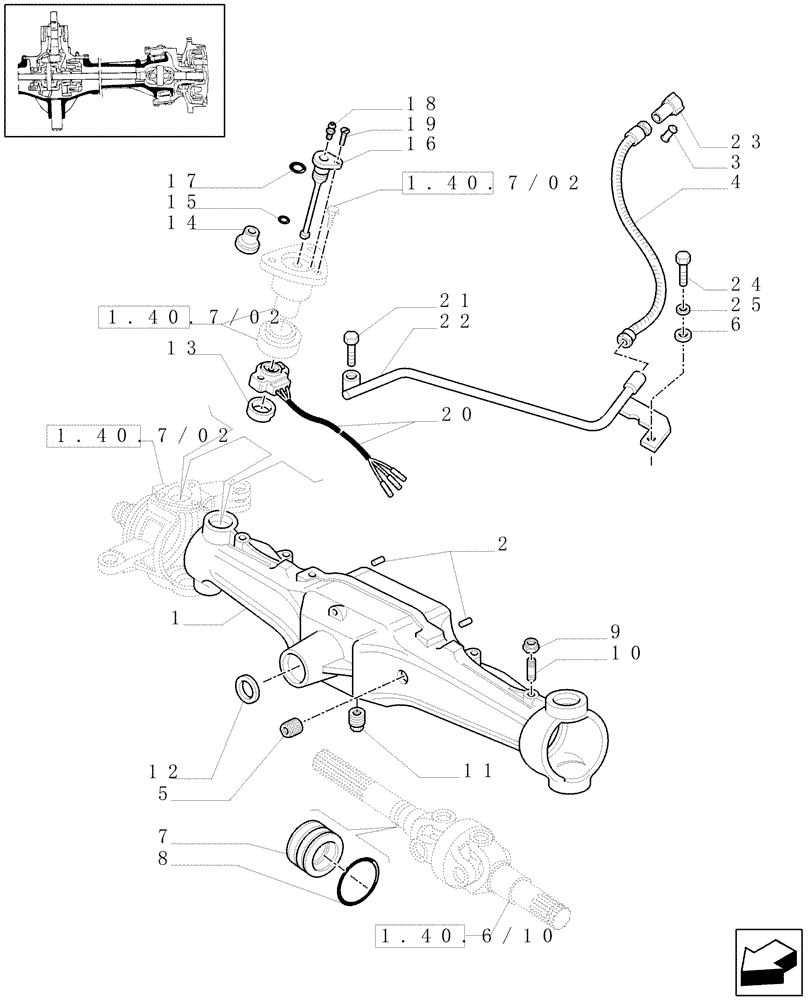

Запчасти Case IH MXM155 (1.40.7/01) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - BOX (04) - FRONT AXLE & STEERING

1

47136868

AXLE HOUSING

, Serial Range: -C5196

1шт.

1

87307363

AXLE HOUSING

, Start Serial: D5196

1шт.

2

5174376

DOWEL,M16 x 30

M16 x 30

2шт.

3

82918419

PLUG

1шт.

4

82016109

FLEXIBLE SHEATH

1шт.

5

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

6

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

7

5184555

SLEEVE

MXM120, MXM130, MXM140, Serial Range: -C5338

2шт.

7

87518052

SLEEVE

MXM120, MXM130, MXM140, Start Serial: D5338

2шт.

7

5134277

SLEEVE

MXM155, MXM175, MXM190, Serial Range: -C5243

2шт.

7

87371236

BUSHING,68mm ID x 95mm OD x 49mm L

MXM155, MXM175, MXM190, Start Serial: D5243

2шт.

8

14461180

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

, Serial Range: -C5243

2шт.

8

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

, Start Serial: D5243

2шт.

9

16101524

NUT,M12 x 1.25, Cl 10

2шт.

10

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

Magnetic

1шт.

12

5140888

RING

1шт.

13

5168958

SUPPORT

, Serial Range: -C5196

1шт.

14

5175211

BUSHING,10mm ID x 23mm OD x 17mm L

, Serial Range: -C5196

1шт.

15

14452780

O-RING,0.239" ID x 0.07" Width

, Serial Range: -C5196

1шт.

16

5178653

PIN,9mm OD x 81mm L

, Serial Range: -C5196

1шт.

17

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

, Serial Range: -C5196

1шт.

18

87414

LUBE NIPPLE,1/4" - 28

, Serial Range: -C5196

1шт.

19

10384911

SCREW,Slotted Countersunk, M5 x 12mm

M5 x 12, Serial Range: -C5196

1шт.

20

82019691

SENSOR

Steering Angle, Serial Range: -C5196

1шт.

21

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

22

5191224

TUBE

1шт.

23

82918426

ELEC CONNECTOR,Female

Incl. 3

1шт.

24

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

25

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.
